hydraulic press / motorized / forming / vertical
DE 100

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic, motorized

  • Function:

    forming

  • Other characteristics:

    vertical, double-action

  • Opening:

    1,000 mm

  • Force:

    980.7 kN

Description

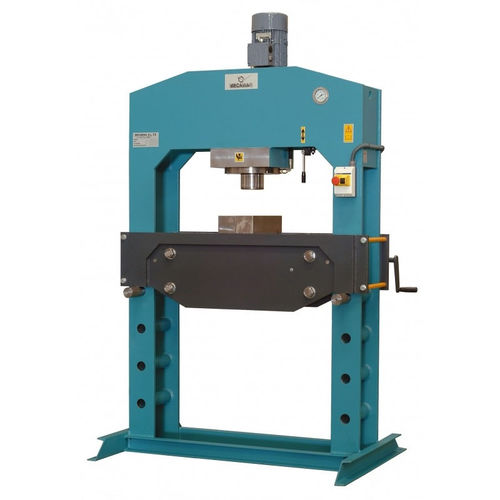

This motor-operated press can be activated by means of a three-position distributor. This product is a type of a double-acting cylinder which is equipped with a guidance system, along with an anti-wear strips with bronze loads. This bronze loads guarantee the accurate absorption of the lateral stresses. A cylinder pin and a detachable mechanized hold-down plate are also present in this device.

Its solid structure and a monobloc format ensure its greater rigidity. Its floating bedplate can be adjusted to different heights by means of an endless reducer and an end-transmission by stranded steel cable.
