hydraulic press / motorized / forming / vertical
DE-125

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic, motorized

  • Function:

    forming

  • Other characteristics:

    vertical, double-action

  • Opening:

    1,000 mm

  • Force:

    1,225.8 kN

Description

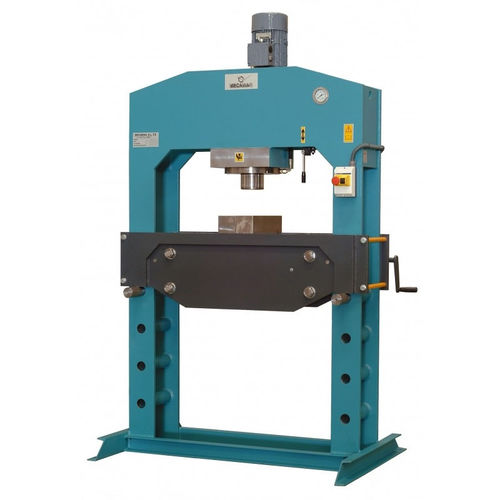

Motor-operated presses from Mecamaq are run by three positions-distributor. It has a double acting cylinder which is designed with a double guidance along its anti-wear strips. The double guidance mechanism has bronze loads and is installed for the absorption of lateral stress. A detachable and mechanized hold-down plate which is mounted on the end of the cylinder pin is used to fasten the tools.

The model is built on a solid structure with a monobloc format. This ensures the rigidity of the entire machine. The floating bedplate can be adjusted to different heights through an endless reducer and an end transmission.
