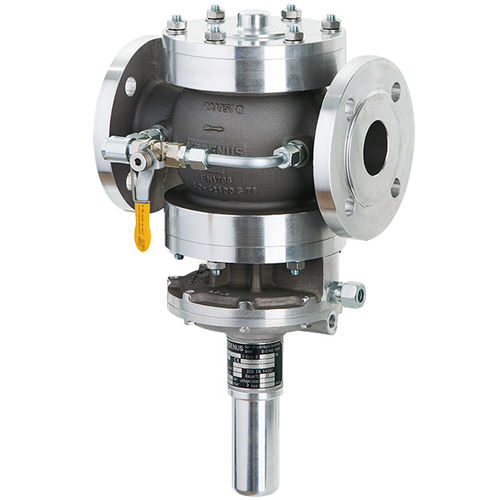

Shut-off safety valve S 100airfor gasfor pipelines
Add to favorites
Compare this product
Characteristics
- Fluid
- air, for gas
- Applications
- for pipelines, for boiler, low-pressure, high-pressure, for vacuum
- Other characteristics
- manual, flange, pneumatic, diaphragm, plug, shut-off, compact, proportional, corrosion-resistant, directional, in-line, high-performance, for oxygen, automatic
- Controlled pressure
Max.: 8 bar
(116 psi)Min.: 0 bar
(0 psi)- DN
Max.: 160 mm
(6.299 in)Min.: 32.5 mm
(1.28 in)- Flow rate
Max.: 30,000 m³/h
(1,059,440 ft³/h)Min.: 5 m³/h
(176.57 ft³/h)
Description
The S100 Safety Shut Off valve is mainly used to avoid any damage to components as well as to avoid too high or too low pressure in the gas train. This could cause high financial losses and/or injured people.
The safety shut off valve S100 is suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request).The S100 is available with flange connections DN25 to DN200 and working pressure up to 8,0 bar. All safety shut off valves are certified by DVGW and CE.
Catalogs
Safety shut-off valve - S 100
20 Pages
