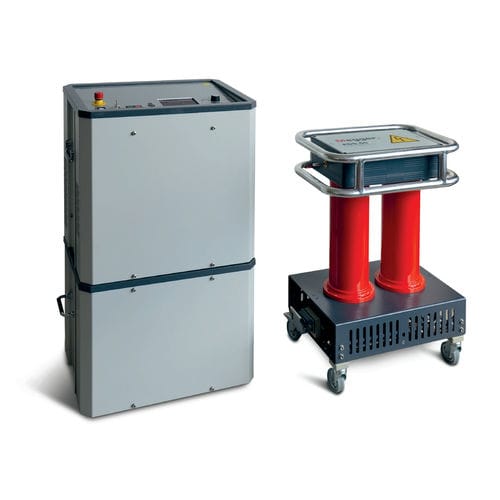

High-power test system TDM45
for electrical networksmodularcable

high-power test system
high-power test system
Add to favorites
Compare this product


Characteristics

Domain
for electrical networks
Configuration
modular
Options
cable, medium-voltage, high-power

Description

• Cable testing, cable diagnosis and sheath testing in one device • Enables standard compliant high power VLF testing at 0.1 Hz (5 µF @ 40 kV RMS)) • Internal tanDelta measurement with automatic result interpretation • Partial discharge diagnosis using VLF Sine wave, Damped AC or 50/60 Hz Slope technology voltages TDM 45 series is a revolutionary breakthrough in testing and diagnosis of MV cables. The patented concept addresses the utilities increasing need for flexibility in use of test and measuring equipment based on the type of application. The modular concept allows the engineer to individually set-up the unit based on the type of job that needs to be executed. If e.g. withstand testing on short cable lengths need to be performed then only one module is needed. When part of the task is also to perform a partial discharge diagnosis then an additional module is needed. Technical specifications • Test type PD • Test type TanDelta • Test type VLF • Mobility Portable

Exhibitions

Meet this supplier at the following exhibition(s):

InnoTrans 2024
InnoTrans 2024

24-27 Sep 2024 Berlin (Germany) Hall 17 - Stand 200

  • More information
