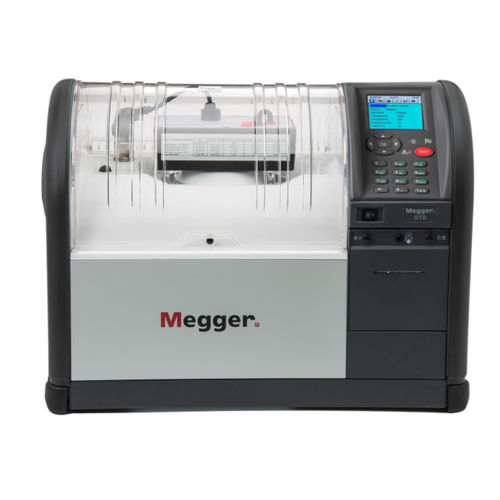

Tangent delta test set OTD

laboratorycompact

• Fully automated standard and user defined tests - Supports all international standards • Integrated test cell heating and cooling systems • Efficient oil fill and integrated automated oil drain facility • IEC 60247 Innovative Test Cell - easy to assemble and clean • Stores up to 50 records on-board and download to PC • Compact and lightweight (22 kg / 48.5 lbs.) The Oil Tan Delta (OTD) is a laboratory instrument, which measures the Tan Delta, Resistivity and Relative Permittivity of insulating liquids. These tests give a wider picture of the overall quality of the insulating oil, and will indicate if there is any contamination. Megger has developed features of the OTD to ensure that productivity levels within laboratories are maximised. The microprocessor controlled inductive heater means that there is uniformity of temperature throughout the cell, in compliance with IEC 60247, and for cooling a fan effectively speeds up the cell cooling time. The instrument has a temperature measuring range of 10 to 110 ºC, with an accuracy of ± 1 ºC. It can be set to preheat before testing takes place. The automated oil drain facility negates the need to move the oil vessel. This test set has been designed with your safety in mind so that during a test, you can terminate at any time by pressing any button on the keyboard and this will remove the high voltage immediately and abort the test. The design of the cell components also maximise the oil fill rate but minimise turbulence in oil flow and eliminate trapping of air. What's more, with only 32 cell components, it is easy to assemble and disassemble.
