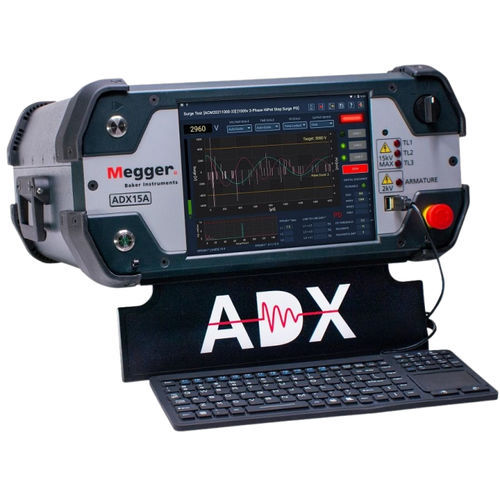

Capacitance tester ADX

partial dischargesurge impulseinsulation resistance

The Megger Baker ADX automated static motor analyser is an innovative and transformational leap forward for motor testing in today’s demanding workplaces. It offers a comprehensive set of tests for assessing the health of electric motors, for monitoring and analysing trends in motor condition, and for locating faults. The portable ADX analysers provide, depending on the model, high voltage tests for surge, turn-to-turn partial discharge, insulation resistance, polarisation index, DC hi-pot and step voltage tests, as well as low voltage tests for winding resistance, inductance, and capacitance. A single set of plug-in high voltage Kelvin test leads means there is no need to change leads between tests. All ADX analysers offer a choice of manual, automatic or sequenced testing. Optional built-in armature test hardware: by incorporating the armature transformer directly into the device, the reliance on large, costly external components or removable test leads is eliminated, enhancing efficiency and minimizing extra connections. Engineered with improved measurement circuits, it ensures exceptional precision and stability, even when performing critical impulse tests on armatures. Designed for seamless compatibility with both 30 kV and 40 kV power packs, this hardware enhances the testing experience, enabling you to work smarter and achieve consistent results every time. • Perform a full range of tests to determine motor health • Increase your productivity with simplified workflows • Optional built-in armature test hardware • Integrated asset management and data synchronization
