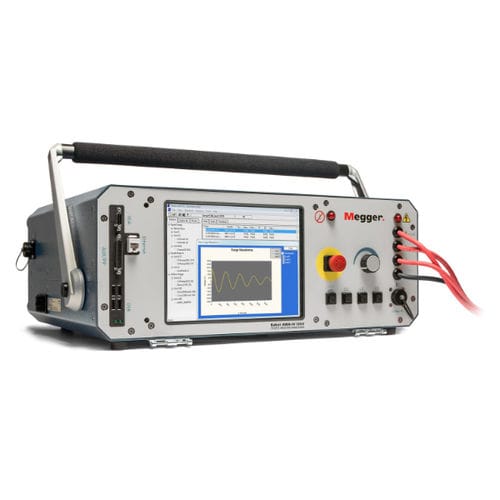

Insulation tester Baker AWA-IV

voltagesurge impulsedielectric

• Range includes 2 kV, 4 kV, 6 kV, and 12 kV models • Testing capabilities include: surge, winding resistance, Megohm, PI, DA, continuous ramp DC step-voltage, and DC hi-pot tests • 12 kV HO (high-output) version for performing surge tests on large motors and generators The Baker AWA-IV static motor analyser automatically performs repeatable, user-programmable tests to thoroughly assess the strength of a motor’s insulation and circuit. In fact, it is the only high voltage test instrument that you can program to perform a specific set of insulation tests prior to being in the field, and then use as programmed in the field. The AWA-IV is also used to assure quality of motor rebuilds or new production motors before they are placed into service. The Baker AWA-IV is a simple-to-use test instrument with an intuitive, touch screen user interface. It delivers accurate, repeatable results regardless of the skill level of a given operator. It easily detects problems that low voltage testers cannot find by performing a comprehensive set of both high- and low-voltage tests. Results are presented in simple, easy-to-understand graphs and reports that give motor maintenance professionals the information they need to minimise costs and unplanned downtime. The ability to apply identical tests to a given motor over a long period allows trends to be analysed, revealing the degradation of insulation over the motor’s lifetime. This allows maintenance professionals to predict when a motor may fail, and plan its replacement accordingly.
