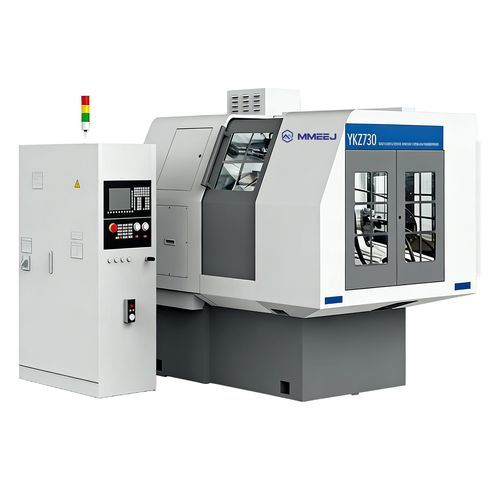

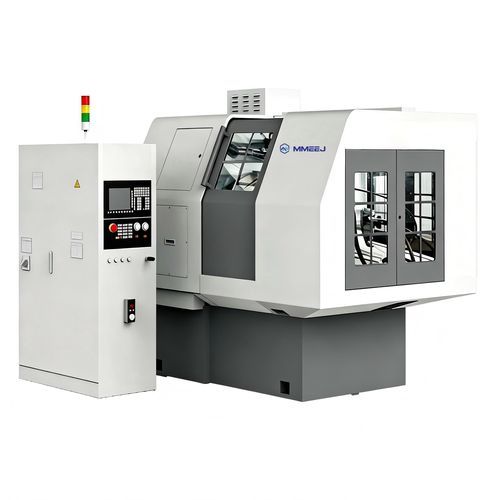

CNC gear-cutting machine YK27 series

horizontalfor bevel gear

Overview
The YK27 series CNC straight bevel gear double-cutter milling machine (models YK2712 and YK2730) is designed for roughing and finishing straight bevel gears with a drum-shaped tooth profile. Developed from extensive experience in bevel gear machining, the series delivers high processing efficiency and low noise while meeting GB 6 machining accuracy. Suitable for gearbox and reducer components, precision transmission gears, and rear axle half-shaft gears for high-end automobiles. Applicable to single-piece, small-batch and mass production.

Applications

• Machining gearboxes and reducers
• Production of precision transmission gears with straight bevel gear drives
• Rear axle half-shaft gears for high-end automobiles
• Single-piece, small-batch and mass production

Advantages

• High processing efficiency (approx. 3–5× a gear planer of similar specifications)
• Low operational noise
• Achieves GB 6 level machining accuracy
• Capable of both roughing and finishing for drum-shaped tooth profiles

Technical data

• Models: YK2712, YK2730
• Max. module: 2.5 mm (YK2712); 8 mm (YK2730)
• Max. workpiece diameter: 120 mm (YK2712); 300 mm (YK2730)
• Max. ratio: 10:1 (both models)
• Max. face width: 11 mm (YK2712); 40 mm (YK2730)
• Cutter size: 6" (152.4 mm) for YK2712; 10", 10.5" for YK2730
• Machine weight: 2000 kg (YK2712); 6000 kg (YK2730)
• Processing accuracy: GB 6 level

Specifications

• Series: YK27
• Intended operations: roughing and finishing of straight bevel gears with drum-shaped tooth profiles
• Suitable production volumes: single-piece, small-batch, mass production
• Recommended industries: gearboxes, reducers, automotive drivetrain components
