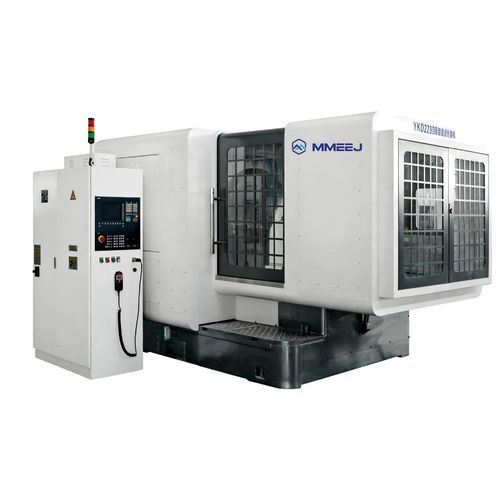

CNC gear-cutting machine YK22 series

horizontalfor bevel gear

Overview
The YK22 series of gear milling machines is designed for bevel and spiral bevel gear processing across multiple industrial sectors. It supports a wide range of module sizes and workpiece diameters, making it suitable for production in automotive, aerospace, new energy, precision machinery and other industrial applications.

Control system & accuracy
Equipped with the SIEMENS 828D CNC system as standard. FANUC and domestic control systems are available as options. Machined workpieces can achieve accuracy up to GB grade 6–7.

Models & functionality

• YKH model: 4-axis CNC machine allowing programmable hobbing, gear dividing, axial feed and cutter speed for optimized processing of small-module bevel gears.
• YK model: 3-axis CNC spiral bevel gear milling machine with a cradle-type structure for high structural and transmission rigidity, ensuring stable machining accuracy and long service life.

Standard equipment
Includes full guards, automatic chip conveyor and an independently sealed electrical control cabinet.

Performance table
Items | Unit | YKH2212 | YK2212B | YK2232 | YKT2250 | YKD2280 | YK22160
Max. Module | mm | 2.5 | 3 | 6 | 10 | 15 | 30
Max. Workpiece Dia | mm | 125 | 125 | 320 | 500 | 800 | 1610
Max. Ratio | | 10:1 | 10:1 | 10:1 | 10:1 | 10:1 | 10:1
Max. Face Width | mm | 20 | 20 | 40 | 70 | 100 | 240
Teeth Number | | 5–100 | 5–100 | 5–100 | 5–100 | 4–100 | 4–100
Cutter Size | inch | 0.5, 1, 1.5, 2, 3.5 | 0.5, 1, 1.5, 2, 3.5 | 6, 7.5, 9 | 6, 9, 12 | 6, 9, 12, 18 | 18–40
Machine Weight | kg | 2300 | 2600 | 6000 | 6500 | 12500 | 95000

Technical specifications

• Series: YK22 Series
• Control: SIEMENS 828D CNC system (FANUC and domestic systems optional)
• Workpiece accuracy: up to GB grade 6–7
• YKH model: 4-axis CNC, programmable hobbing, gear dividing, infeed and cutter speed
• YK model: 3-axis CNC spiral bevel gear milling, cradle-type structure for high rigidity
• Standard equipment: full protection, automatic chip remover, independently sealed electrical control cabinet
• Applications: electric tools, automobiles, engineering machinery, aircraft, ships, new energy, smart home appliances, precision machine tools
