CNC gear-shaping machine YK23 series
horizontal

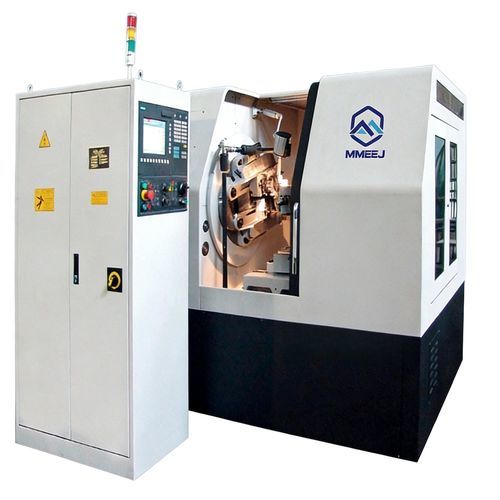

CNC gear-shaping machine - YK23 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal
CNC gear-shaping machine - YK23 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal
CNC gear-shaping machine - YK23 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal - image - 2
CNC gear-shaping machine - YK23 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - horizontal - image - 3
Add to favorites
Compare this product
Go to the Meijin Machinery Equipment (Dalian) Co., Ltd. website for more information

Characteristics

Control type
CNC
Options
horizontal

Description

Overview
  • The YK23 Series CNC straight bevel gear planing machine (models YK2312 and YKM2350) is designed for the machining of high‑precision straight bevel gears. It is developed from the manufacturer's experience in straight and spiral bevel gear machine tools and is intended for applications such as precision instruments and meters.
  • Suitable for batch and small‑batch production, the machine offers simple operation, stable performance and achieves cutting accuracy at GB6 level. Customers can supply drawings for machine matching. Page images show examples of parts that can be machined.


Technical data
  • Models: YK2312 | YKM2350
  • 1. Workpiece dimensions: Max. module: 2.5 mm (YK2312) | 10 mm (YKM2350); Max. length of pitch element: 60 mm | 250 mm; Max. pitch diameter (Ratio 10:1): 120 mm | 500 mm; Root angle (Max/Min): 90°/4° | 80°/8°; Extreme ratio (AL 90° shaft angle): 10:1 | 10:1; Max. tooth depth: 5.5 mm | 20 mm; Max. face width: 20 mm | 85 mm; Number of teeth: 5–150 | 10–200.
  • 2. Workpiece spindle: Diameter of taper hole at large end: φ31.267 | φ100; Taper: Morse NO.4 | 1:20; Taper length: 80 mm | 160 mm; Diameter of through hole: φ20 H11 | φ78; Distance from face of spindle to machine center: 30–190 mm | 70–380 mm.
  • 3. Cutter head: Adjusting angle: 360° | 120°; Max. cradle roll: 80° | 60°; Max. positioning angle of tool holder: 8° | 8°; Max. travel of cutter: 28 mm | 95 mm; Over run of cutter (inner end/outer end): 3 mm/5 mm | 3 mm/5 mm.
  • 4. Cutter: Type: GR83-601 straight bevel gear cutter; Cutter specification: I | III; Cutter strokes per minute: 250–700 | 98–500.
  • 5. Voltage: 380 V. 6. Machine weight: 1.8 t | 8 t. 7. Overall dimensions (L×W×H): 1700×1650×1700 mm | 2400×1800×1800 mm.


Characteristics / technical specifications
  • Series: YK23 Series
  • Models available: YK2312 and YKM2350
  • Application: Machining high‑precision straight bevel gears for sectors such as precision instruments and meters
  • Cutting accuracy: GB6 level
  • Max. module of work: 2.5 mm (YK2312), 10 mm (YKM2350)
  • Max. pitch diameter (10:1 ratio): 120 mm (YK2312), 500 mm (YKM2350)
  • Number of teeth range: 5–150 (YK2312), 10–200 (YKM2350)
  • Cutter strokes per minute: 250–700 (YK2312), 98–500 (YKM2350)
  • Voltage: 380 V
  • Machine weight: 1.8 t (YK2312), 8 t (YKM2350)
  • Overall dimensions (L×W×H): 1700×1650×1700 mm (YK2312), 2400×1800×1800 mm (YKM2350)
