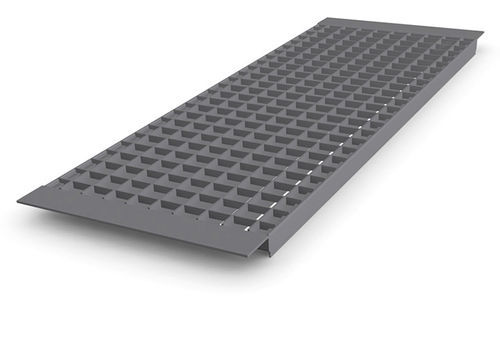

Galvanised steel grating Inlaid between supports shelf grating with Z-shaped angle section surround

steelweldedfor shelving

Product information
This is the most common design of the inserted shelf grating. The angle collar used is a rolled section of MEISER design, which is inserted into the bearing bars and additionally welded. For orders of at least 500 pieces, this grating can be supplied in pregalvanized steel (S350GD) for indoor use only; this option is offered at a significantly lower price.

Accessories / Fixing clips

• Hook fastener: Clip or disc upper part, hook made of bent round bar steel with sleeve-type nut welded on, hexagon screw M8.
• Hilti clamp: Consisting of saddle top clip and lower part connected to one another; high resistance to vibrations, single-person handling and significantly reduced installation times.
• Clamp B: Consisting of a saddle top clip, clamp lower part, M8x60 hexagon screws and M8 square nut.

Technical specifications

• Design: Inlaid shelf grating positioned between supports with Z-shaped angle-section surround
• Angle collar: Rolled section of MEISER design, inserted into bearing bars and additionally welded
• Material option: Pregalvanized steel S350GD available for orders of at least 500 pieces (indoor use only)
• Typical application: Inserted shelf grating for shelving systems and industrial racking
