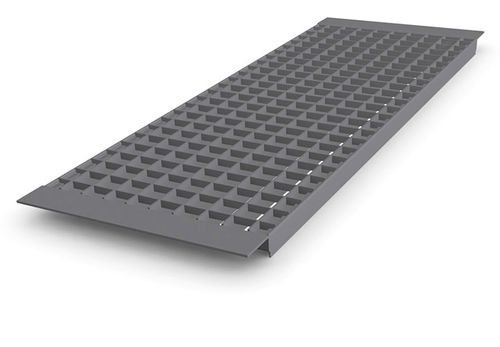

Racking decking Inlaid between supports shelf grating with Z-shaped angle section surround

Product information
This is the most common design of the inserted shelf grating. The angle collar is a rolled section of our own design; it is inserted into the bearing bars and additionally welded to secure the assembly. For orders of at least 500 pieces, supply with pregalvanized steel S350GD is available (indoor use only) at a significantly lower price.

Accessories / Fixing clips

• Hook fastener - Clip or disc upper part; hook made of bent round-bar steel with a sleeve-type nut welded on; hexagon screw M8.
• Hilti clamp - Consists of a saddle top clip and a lower part connected together; high resistance to vibrations and easy transport by one person, reducing installation time.
• Clamp B - Consists of a saddle top clip, clamp lower part, M8x60 hexagon screws and M8 square nut.

Caractéristiques / spécifications techniques

• Design: Inlaid between supports shelf grating with Z-shaped angle section surround
• Angle collar: Rolled section (own design), inserted into bearing bars and additionally welded
• Material option: Pregalvanized steel S350GD available for orders of at least 500 pieces (indoor use only)
• Accessories: Hook fastener, Hilti clamp, Clamp B (details as listed above)
• Typical application: Inserted shelf grating for shelving and similar installations
