Wire mesh racking decking

Product overview

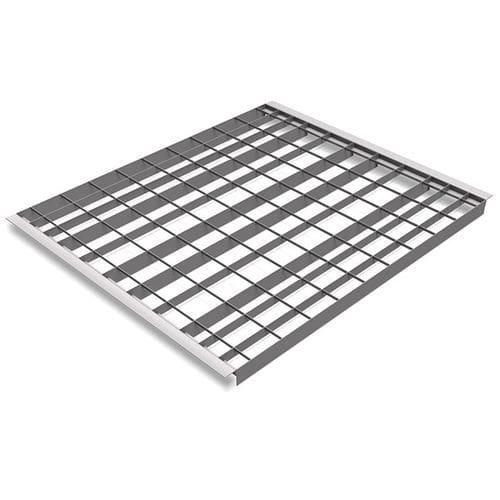

Modular shelf grating designed to optimise bearing bar placement for pallet storage. Modules allow higher bearing bars where increased payload is expected and lower bars where load is minimal, resulting in a lightweight, application-oriented grating. Optimised for euro pallets and half euro pallets, placed lengthwise or crosswise, and for different evenly distributed payloads.

Advantages of the MEISER Modul

• Z-profile for inserting the grating (overlaying installation height max. 2 mm)
• Clear selection between load categories (see technical data)
• Standard module arrangements for shelf lengths: 1800 mm (2 parts), 2700 mm (3 parts), 3600 mm (4 parts)
• Fast delivery for standard products (small quantities on call order within 48 h)
• Open cross section > 90% — suitable for sprinkler systems
• Low deflection under load (< L/200) — in accordance with DIN EN 15635
• Low weight and cost-efficient design
• Easy determination of maximum shelf load

Technical data
Three grating types are produced, each offered in six load categories. The horizontal side of the Z-shaped profile is 40 mm for all types. Typical grating width: 890 mm. The following rows list available payload variants (payload | clear level / bay depth | grating width | grating height | material thickness | mesh BB / CB):

• 1250 kg | 900 (895) mm | 890 mm | 60 mm | 1.7 mm | 66(99) / 66
• 1250 kg | 950 (945) mm | 890 mm | 60 mm | 1.7 mm | 66(99) / 66
• 1250 kg | 1000 (995) mm | 890 mm | 60 mm | 1.7 mm | 66(99) / 66
• 1000 kg | 900 (895) mm | 890 mm | 60 mm | 1.5 mm | 66(99) / 66
• 1000 kg | 950 (945) mm | 890 mm | 60 mm | 1.5 mm | 66(99) / 66
• 1000 kg | 1000 (995) mm | 890 mm | 60 mm | 1.5 mm | 66(99) / 66
• 800 kg | 900 (895) mm | 890 mm | 55 mm | 1.5 mm | 66(99) / 99
• 800 kg | 950 (945) mm | 890 mm | 55 mm | 1.5 mm | 66(99) / 99
• 800 kg | 1000 (995) mm | 890 mm | 55 mm | 1.5 mm | 66(99) / 99
• 500 kg | 900 (895) mm | 890 mm | 50 mm | 1.5 mm | 66(99) / 99
• 500 kg | 950 (945) mm | 890 mm | 50 mm | 1.5 mm | 66(99) / 99
• 500 kg | 1000 (995) mm | 890 mm | 50 mm | 1.5 mm | 66(99) / 99

Application example
Example: three MEISER Modul gratings, 995 x 890 mm, hot-dip galvanised, each with max. payload 1,000 kg. Module design supports storage of euro pallets and half euro pallets in the shown arrangements.

Technical specifications

• Brand: MEISER
• Product type: Shelf grating module for pallet storage (euro pallets and half euro pallets)
• Z-profile horizontal side: 40 mm
• Overlaying installation height: max. 2 mm
• Open cross section > 90% — suitable for sprinkler systems
• Deflection under load < L/200 (DIN EN 15635)
• Three grating types, each in six load categories
• Typical module arrangements: 1800 mm (2 parts), 2700 mm (3 parts), 3600 mm (4 parts)
• Payload categories: 1250 / 1000 / 800 / 500 kg per grating
• Grating width: 890 mm
• Grating heights: 60 mm, 55 mm, 50 mm depending on load category
• Material thickness: 1.7 mm (highest load), 1.5 mm (other groups)
• Mesh options: BB 66(99) mm and CB 66 mm or CB 99 mm depending on type
