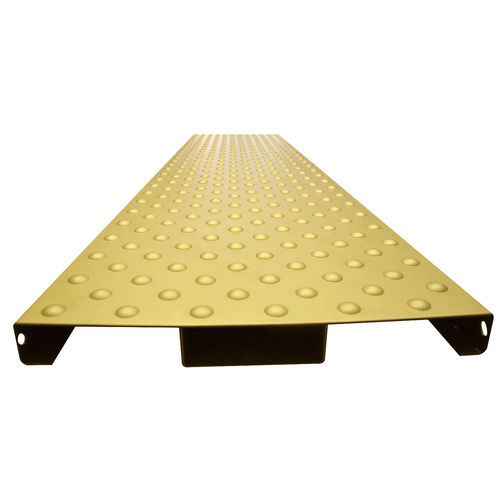

Anodized aluminum construction profile Tolplot

circularflooring or stepfor stair

Product information

• Profile with circular tactile studs for pedestrian warning
• Circular stamping: depth 5 mm, diameter 25 mm, spacing (axis) 75 mm
• Material: anodized aluminium EN 5754 AlMg3 H22
• Color options: gold or black

Characteristics

• Designed to support pedestrian loads for spans up to 2000 mm
• Available in two heights to suit different ramp/landing requirements

Use

• Creates a contrasted podotactile area for orientation and warning
• Install 500 mm in front of a stair landing or tread

Installation

• Fix onto supporting beams or continuous support elements
• Provide cut-out in steel or timber gratings where applicable
• Cut to final width on site

Technical data
Length (bearing direction mm): 2000
Width (mm): 480
Height (mm): 30 / 50
Mass (kg/piece): 14.8

Technical specifications

• Material: anodized aluminium (EN 5754 AlMg3 H22)
• Circular stampings: depth 5 mm; diameter 25 mm; axis 75 mm
• Suitable for pedestrian loads with span 2000 mm
• Recommended installation distance before stairs: 500 mm
• Mounting: onto supporting beams; cut-out required in grating or timber floors; on-site cutting
• Available sizes: length 2000 mm; width 480 mm; height 30 mm or 50 mm
• Weight: approx. 14.8 kg per plate
• Color options: gold, black
