Metal grating

press welded

Product description

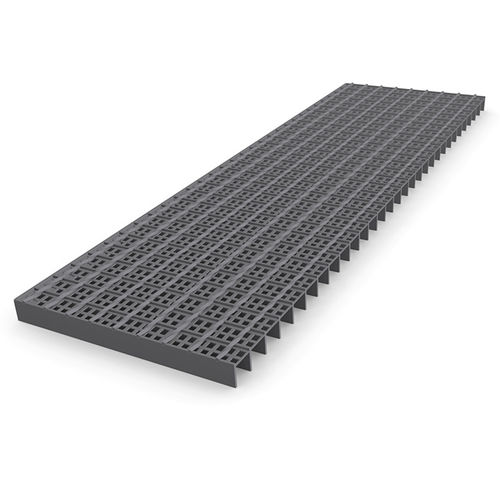

Press welded grating MEISER with perforated sheet for close-meshed safety. When standard press welded grating cannot achieve sufficiently small mesh widths for technical reasons, perforated sheet strips welded between the bearing bars allow production of a close-meshed grating with a maximum aperture of 8 mm. This provides a cost-effective solution to prevent passage of small parts while retaining welded-grating construction. This grating corresponds to Spanish standard no. 486/1997 (BO 23 April 1997, no. 97/1997).

Technical data
Common mesh spacing
BEARING BAR — CROSS BAR
34,30 — 38,1 — 50,8

Standard bearing bar profiles
BEARING BAR 2 MM — BEARING BAR 3 MM
25/2 — 25/3
30/2 — 30/3
40/2 — 40/3

Accessories / Fixings

• Welded-in holed fixing plates: Holed plate welded into the grating according to customer specification; fasteners provided by the installer.
• Double clamp B: Two saddle-top clips, clamp lower part, two hexagon screws and two square nuts.
• Heald-bolt fastener: Head bolts with retaining flange; variants available for highly corrosive environments (e.g. X-BT); pre-assembled X-GR RU on request.
• Grating butt joint: Top and base parts with thread and Allen screw for joining panels.
• Hilti clamp: Saddle top and lower parts connected; high vibration resistance and faster single-person installation.
• Clamp B: Saddle top clip, clamp lower part, M8x60 hexagon screws and M8 square nut.
• Clamp B 10: Stirrup top clip, hexagon socket screw, clip lower part and nut.
• Clamp S: Flat head screw, clamp lower part and square nut.
• Safety clamp A: Safety upper part, clamp lower part, hexagon screw and square nut.
• Safety clamp D: Safety upper part, clamp lower part, hexagon screw and square nut.

Characteristics / technical specifications

• Product type: Press welded grating with perforated sheet welded between bearing bars to achieve close mesh.
• Perforated sheet aperture: Maximum 8 mm between bearing bars (8 mm ball-proof solution).
• Purpose: Prevents passage of small parts where standard press welded mesh widths are too large.
• Standard compliance: Spanish standard no. 486/1997 (BO 23 April 1997, no. 97/1997).
• Common mesh spacing (example values): BEARING BAR — CROSS BAR: 34,30 — 38,1 — 50,8.
• Standard bearing bar profiles: 25/2, 30/2, 40/2 (2 mm) and 25/3, 30/3, 40/3 (3 mm).
• Available fixing options: welded-in plates, multiple clamp types, heald-bolt fasteners, butt joints and Hilti solutions; variants for corrosive environments available.
