Metal grating

press weldedweldedrugged

Product information

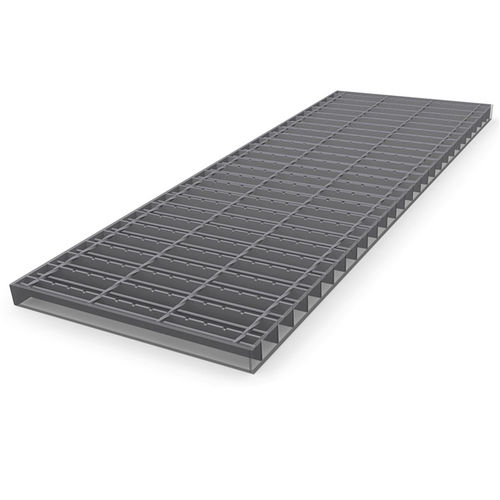

This press-welded grating is designed for offshore oil and gas platforms. It is manufactured so that a 15 mm diameter test ball cannot pass through the mesh. To ensure this, an intermediate round bar is welded centrally and parallel between the bearing bars to the underside of the twisted square cross bars by automatic resistance welding, providing increased stability for severe offshore conditions.

Technical data
Common mesh spacing
Bearing bar — Cross bar
34,30 — 101,6
38,28 — 101,6

Standard bearing bar profiles
Bearing bar 3 mm — Bearing bar 5 mm
25/3 — 25/5
30/3 — 30/5
35/3 — 35/5
40/3 — 40/5
45/3 — 45/5
50/3 — 50/5
60/3 — 60/5

Accessories / Fixing clips

• Welded-in perforated fixing plates: welded-in perforated plate; hole pattern according to customer specification; fasteners provided by customer.
• Double clamp B: 2 saddle top clips, clamp lower part, 2 hexagon screws and 2 square nuts.
• Grating heald bolt fastener: head bolts and retaining flange; for highly corrosive environments available as X-BT; pre-mounted version X-GR RU.
• Grating butt joint: comprising top and base with thread and allen screw.
• Hilti clamp: saddle top clip and lower part connected; high vibration resistance, single-person handling and reduced installation times.
• Clamp B: saddle top clip, clamp lower part, M8x60 hexagon screws and M8 square nut.
• Clamp B 10: stirrup top clip, hexagon socket screw, clip lower part and nut.
• Clamp S: flat head screw, clamp lower part and square nut.
• Safety clamp A: safety upper part, clamp lower part, hexagon screw and square nut.
• Safety clamp D: safety upper part, clamp lower part, hexagon screw and square nut.

Characteristics / technical specifications

• Intended use: offshore oil and gas platforms.
• Retention criterion: 15 mm test ball must not pass through the mesh.
• Construction: intermediate round bar welded centrally between bearing bars to underside of twisted square cross bars using automatic resistance welding.
• Result: additional stability suitable for high loads and harsh offshore conditions.
• Common mesh spacing: Bearing bar 34,30 — Cross bar 101,6 and Bearing bar 38,28 — Cross bar 101,6.
• Standard bearing bar profiles (3 mm / 5 mm): 25/3 — 25/5; 30/3 — 30/5; 35/3 — 35/5; 40/3 — 40/5; 45/3 — 45/5; 50/3 — 50/5; 60/3 — 60/5.
