Aluminum grating TOLSUN

weldedsheet metallight

Product overview

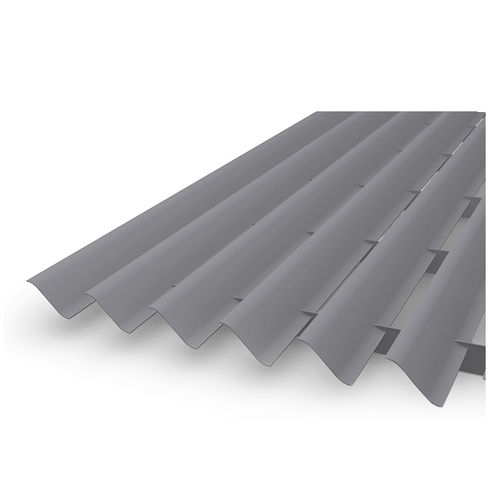

MEISER Tolsun is a designer façade grating produced exclusively by MEISER. Developed by the French team, the name highlights the product’s primary function as a sun-shading element. Specially profiled aluminium lamellas, inspired by aircraft wings, act as cross bars and give the Tolsun a distinct architectural appearance.

Performance and use
As a façade element the Tolsun provides effective sun shading while allowing natural air flow, contributing to building ventilation strategies and thermal comfort. The system is supplied with a mounting proposal as a complete façade solution and supports large one-piece elements thanks to its lightweight construction.

Technical details
Support bar 50/3 | Lamellas 100 x 1.5
300 mm | 60 mm
300 mm | 120 mm
300 mm | 180 mm

Standard support profiles
Support bar 2 mm | Support bar 3 mm
30/2 | 30/3
35/2 | 35/3
40/2 | 40/3
45/2 | 45/3
50/2 | 50/3

Fixings
Perforated welded plate: manufactured according to customer specification; fasteners supplied by the customer. Plate design and position depend on grille load and local fixing conditions.

Specifications / Technical features

• Brand: MEISER
• Product: Tolsun façade grating
• Material: Aluminium
• Lamellas: 100 x 1.5 (special profile inspired by aircraft wings)
• Example support bar: 50/3
• Spacing/height options shown: combinations 300 mm with 60 mm, 120 mm and 180 mm
• Standard support profiles: 30/2, 30/3, 35/2, 35/3, 40/2, 40/3, 45/2, 45/3, 50/2, 50/3
• Finishes: anodizing or colour coating
• Lightweight construction; possibility to produce single-piece, large-surface elements
• Supplied with a mounting proposal as a complete façade solution
