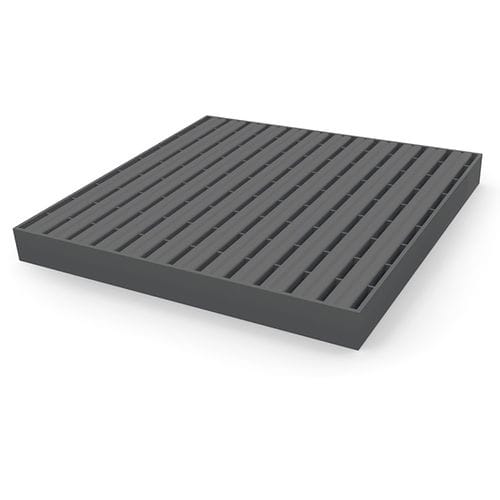

Steel grating Barefoot

stainless steelpressed

Product information
Some locations such as swimming baths are places where shoes are not usually worn. A grating designed for barefoot use provides a comfortable walking surface. The cross bar is a U-shaped section pressed flat. The clear spacing between treads is approximately 9 mm. Available in steel or stainless steel.

Technical data
Common mesh spacing
Bearing bar | Infill bar
22,20 | 8,25
33,30 | 8,25
66,60 | 8,25

Standard bearing bar profiles
Bearing bar 2 mm | Bearing bar 3 mm
30/2 | 30/3
35/2 | 35/3
40/2 | 40/3
45/2 | 45/3
50/2 | 50/3
- | 60/3

Accessories / Fixing clips

• Clamp S: Consisting of a flat head screw, clamp lower part and square nut.

Characteristics / Technical specifications

• Application: Suitable for barefoot areas such as swimming baths.
• Design: Infill bar with U-shaped profile pressed flat for a comfortable walking surface.
• Clear spacing between treads: approximately 9 mm.
• Materials: Steel or stainless (high-grade) steel.
• Common mesh spacing (bearing bar x infill bar): 22,20 x 8,25; 33,30 x 8,25; 66,60 x 8,25.
• Standard bearing bar profiles available: 30/2, 35/2, 40/2, 45/2, 50/2 (2 mm) and 30/3, 35/3, 40/3, 45/3, 50/3, 60/3 (3 mm).
• Accessory example: Clamp S (flat head screw, clamp lower part, square nut).
• Manufacturer/Brand: MEISER
