Covered surface grating

sheet metalhigh load capacityfor vehicles

Product overview

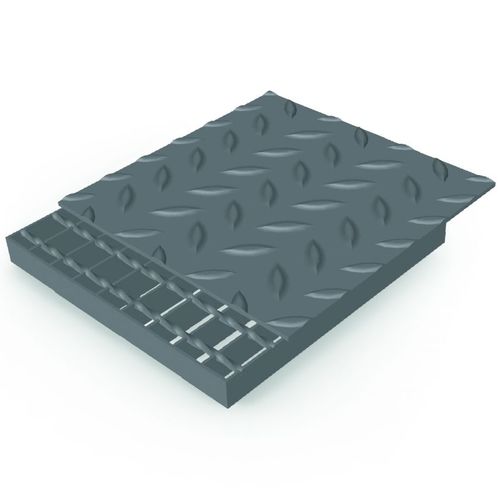

MEISER Top Plate is a plated grating that combines a closed chequered-plate surface with the load-bearing structure of a grating. The closed surface of the chequered plate is integrated onto the grating to provide a drivable, impermeable wearing layer while the grating secures high structural stability.

Technical data
Preferred mesh sizes for MEISER Top Plate
Bearing bar | Crossbar
34,30 | 38,1 | 50,8 | 76,2 | 101,6
33,30 | 33,3 |   | 66,6 | 99,9
44,40 | 33,3 |   | 66,6 | 99,9
66,60 | 33,3 |   | 66,6 | 99,9

Preferred chequer plate dimensions
3/5 | 4/6 | 5/7 | 6/8

Testing and fixings

• Impact testing and tailored structural tests available on request, performed together with in-house structural engineers; full test documentation can be prepared.
• Fixing systems can be supplied for specific applications.
• Accessory: Top Plate setting technique (Setztechnik) — consists of setting bolts and a countersunk screw with pressed long nut.

Key specifications

• Product: MEISER Top Plate (plated grating combining chequered plate and grating).
• Surface: closed chequered plate combined with grating for impermeability and load distribution.
• Application: drivable and high-load surfaces where an impermeable top layer is required.
• Load-bearing capacity: can be individually adapted and optimised to project requirements.
• Preferred mesh and plate dimension options as listed above; other combinations available on request.
