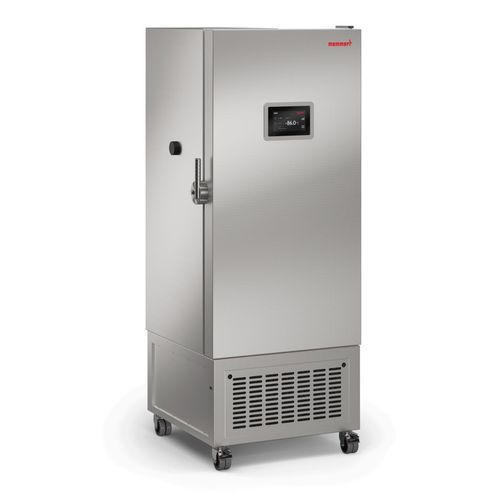

Upright freezer ULT240

laboratoryR170ultra-low-temperature

Short description
Maximum protection for critical laboratory and clinical samples. Secure ultra-low temperature storage with high thermal stability, integrated safety features and energy-optimised cascade cooling technology.

Range of functions
Adjustable parameter: temperature control with 7" touchscreen ergonomically integrated into the outer door.

Temperature
Setting range: -50 to -86 °C
Cooling: two-stage cascade compressors for reliable ultra-low performance; refrigerants: R455A (1st), R170 (2nd); air-cooled condenser
Setting accuracy: 0.1 °C

Communication
Interfaces: Ethernet LAN, USB for monitoring and data export

Safety
Power failure protection: backup battery for alarm and monitoring during power outages
Temperature monitoring: Pt1000 sensor
Alarm: visual and acoustic alerts

Standard equipment
Standard options: door-open detection; lateral entry port / pressure relief Ø 26 mm
Door: insulated stainless steel outer door(s) with mechanical lock
Interior configuration: 4 compartments including 2 stainless steel inner doors and 3 height-adjustable shelves for flexible load adaptation

Stainless steel interior
Internal dimensions (W x H x D): 450 x 1111 x 489 mm
Max. number of 2" / 50 mm boxes: 162
Volume: 244 l
Max. chamber loading: 280 kg
Max. loading per shelf: 140 kg

Textured stainless steel casing
External dimensions (W x H x D): 700 x 1832 x 738 mm
Installation: on lockable castors for mobility and placement stability

Packing / shipping data
Customs tariff number: 8418 40 20
Country of origin: Netherlands
Transport: appliances must be transported upright
Dimensions incl. carton (W x H x D): 900 x 2050 x 900 mm
Net weight: approx. 245 kg
Gross weight (with carton): approx. 310 kg

Certifications
Standard units are safety-approved and bear the CE mark

Technical specifications

• Model: ULT240
• Brand: Memmert
• Temperature range: -50 to -86 °C
• Setting accuracy: 0.1 °C
• Cooling system: 2-stage cascade compressors; refrigerants R455A (1st), R170 (2nd); air-cooled condenser
• Control: 7" touchscreen integrated in outer door
• Interfaces: Ethernet LAN, USB
• Alarm: visual and acoustic; backup battery for power failure
• Temperature sensor: Pt1000
• Internal volume: 244 l
• Internal dimensions (W x H x D): 450 x 1111 x 489 mm
• External dimensions (W x H x D): 700 x 1832 x 738 mm
• Max. number of 2"/50 mm boxes: 162
• Max. chamber loading: 280 kg; max. loading per shelf: 140 kg
• Installation: on lockable castors
• Standard interior: 4 compartments with 2 stainless steel inner doors and 3 height-adjustable shelves
• Door: insulated stainless steel outer door(s) with mechanical lock
• Entry port / pressure relief: Ø 26 mm, lateral
• Country of origin: Netherlands
• Customs tariff number: 8418 40 20
• Net weight / Gross weight (with carton): approx. 245 kg / approx. 310 kg
