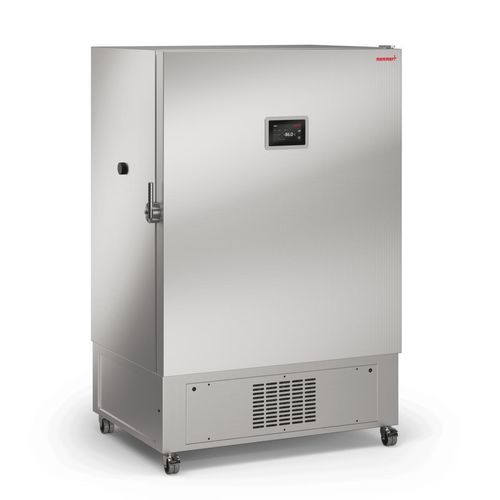

Upright freezer ULT1000eco

laboratorypropane (R290)R170

Overview
Maximum protection for sensitive samples. Secure ultra-low temperature storage with high thermal stability, integrated safety mechanisms and energy-optimised cooling technology.

Range of functions
Adjustable parameters: Temperature
Control unit: 7" touchscreen integrated in the outer door in ergonomic position

Temperature
Setting temperature range: -50 to -86 °C
Cooling system: Two-stage cascade cooling with cascade-connected inverter compressors for precise temperature control and high energy efficiency. Refrigerants: first stage R290 / second stage R170. Air-cooled condenser.
Setting accuracy temperature: 0.1 °C

Communication
Interface: Ethernet LAN, USB

Safety
Power failure: Backup battery for alarming and monitoring during power failure
Temperature monitoring: Temperature sensor Pt1000
Alarm: visual and acoustic

Standard equipment
Standard option: Door-open detection; Entry port / pressure relief opening Ø 26 mm, lateral
Door: Insulated stainless steel outer doors with mechanical door lock
Additional accessories: Standard interior configuration with 4 compartments, consisting of 2 stainless steel inner doors and 3 height-adjustable shelves for flexible adaptation to different load sizes.

Stainless steel interior
Dimensions (W x H x D): 1035 x 1276 x 732 mm
Max. number of 2" / 50 mm boxes: 770
Volume: 966 l
Max. loading of chamber: 440 kg
Max. loading per internal: 220 kg

Textured stainless steel casing
Dimensions (W x H x D): 1285 x 1992 x 973 mm
Installation: on lockable castors

Packing / shipping data
Customs tariff number: 8418 69 00
Country of origin: Netherlands
Transport information: The appliances must be transported upright
Dimensions approx incl. carton (W x H x D): 1440 x 2250 x 1080 mm
Net weight: approx. 425 kg
Gross weight carton: approx. 590 kg

Certifications
Standard units are safety-approved and bear the CE test mark.

Technical data / specifications

• Model name: ULT1000eco
• Brand: Memmert
• Temperature range: -50 to -86 °C
• Setting accuracy: 0.1 °C
• Cooling: 2-stage cascade with inverter compressors (R290 / R170), air-cooled condenser
• Control: 7" touchscreen (outer door)
• Interfaces: Ethernet LAN, USB
• Temperature sensor: Pt1000
• Alarms: visual and acoustic; backup battery for power failure alarming
• Interior volume: 966 l; max number of 2" boxes: 770
• Chamber max loading: 440 kg (220 kg per internal)
• Exterior dimensions (W x H x D): 1285 x 1992 x 973 mm
• Chamber dimensions (W x H x D): 1035 x 1276 x 732 mm
• Transport: upright only
• Net weight: approx. 425 kg; gross weight (carton): approx. 590 kg
• Customs tariff number: 8418 69 00
• Country of origin: Netherlands
