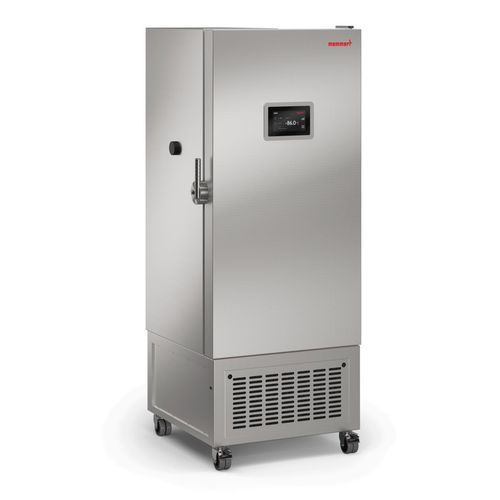

Upright freezer ULT240eco

laboratorypropane (R290)R170

Overview
Maximum protection for samples that matter. Secure ultra-low temperature storage with high thermal stability, integrated safety mechanisms and energy-optimised cooling technology.

Range of functions
Adjustable parameters: Temperature
Control unit: 7″ touchscreen integrated in the outer door in ergonomic position

Temperature
Setting temperature range: -50 to -86 °C
Cooling system: Two cascade-connected inverter compressors for precise temperature control and high energy efficiency. Refrigerants: first stage R290 / second stage R170. Air-cooled condenser.
Setting accuracy temperature: 0.1 °C

Communication
Interface: Ethernet LAN, USB

Safety
Power failure: Backup battery for alarming and monitoring during power failure
Temperature monitoring: Temperature sensor Pt1000
Alarm: visual and acoustic

Standard equipment
Standard option: Door-open detection; Entry port / pressure relief opening Ø 26 mm, lateral
Door: Insulated stainless steel outer doors with mechanical door lock
Additional accessories: Standard interior configuration with 4 compartments consisting of 2 stainless steel inner doors and 3 height-adjustable shelves for flexible adaptation to different load sizes.

Stainless steel interior
Dimensions (A x B x C): 450 x 1111 x 489 mm
Max. number of 2″ / 50 mm boxes: 162
Volume: 244 l
Max. loading of chamber: 280 kg
Max. loading per internal: 140 kg

Textured stainless steel casing
Dimensions (D x E x F): 700 x 1832 x 738 mm
Installation: on lockable castors

Packing/shipping data
Customs tariff number: 8418 40 20
Country of origin: Netherlands
Transport information: The appliances must be transported upright
Dimensions approx incl. carton (w x h x d): 900 x 2050 x 900 mm
Net weight: approx. 245 kg
Gross weight carton: approx. 310 kg

Certifications
Standard units are safety-approved and bear the test marks (CE)

Technical specifications

• Model: ULT240eco
• Brand: Memmert
• Setting temperature range: -50 to -86 °C
• Temperature setting accuracy: 0.1 °C
• Cooling: Two cascade-connected inverter compressors; refrigerants R290 (first stage) / R170 (second stage); air-cooled condenser
• Control unit: 7″ touchscreen integrated in the outer door
• Interface: Ethernet LAN, USB
• Temperature sensor: Pt1000
• Alarms: visual and acoustic; backup battery for power failure alarming and monitoring
• Volume: 244 l
• Interior configuration: 4 compartments; 2 stainless steel inner doors; 3 height-adjustable shelves
• Max. number of 2″ / 50 mm boxes: 162
• Max. loading chamber: 280 kg; Max. loading per internal: 140 kg
• Internal dimensions (A x B x C): 450 x 1111 x 489 mm
• External casing dimensions (D x E x F): 700 x 1832 x 738 mm
• Installation: on lockable castors
• Transport dimensions incl. carton: 900 x 2050 x 900 mm
• Net weight: approx. 245 kg; Gross weight carton: approx. 310 kg
• Country of origin: Netherlands
• Customs tariff number: 8418 40 20
