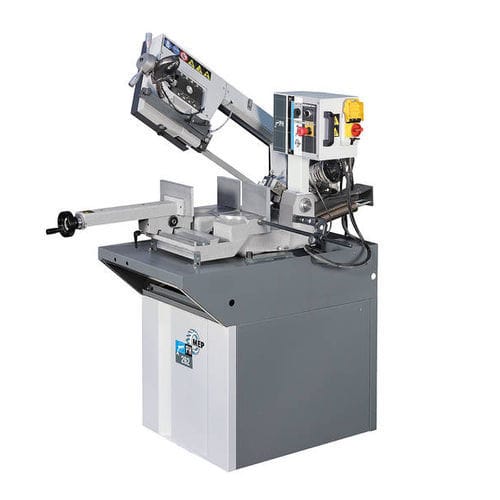

Band saw PH 262

miterfor metalsfor profiles

The PH 262, manual band sawing machines for cuts from -45° to +60° is also supplied in a version with Hydraulic Brake device (HB) to make single cuts without operator but keeping the manual cutting cycle available (the HB device is available only in the three-phase version). – Sturdy structures in cast iron in order to tension the band at 900 kg. – Wide working surface granting a perfect working condition and safety; turning table integral with saw head to cut at any angles without damaging the working surface – Sliding vice with sideways movement and fast positioning system. – Electrical board with entirely identifiable wiring, stand-by, main switch with lock, short circuit protection, motor overload cutout, min. voltage coil, low voltage system 24 V. – Control handle IP55. – Driving pulley locked with clamp ring to ensure a strong fastening, still allowing axial adjustment. – Blade-guide heads with 6 CARBIDE pads instead of bearings to ensure a better stability. – Mechanical stop at -45° and +60° with lever for locking at any angles in between. – Head pivoting with preloaded tapered bearings. – Electric pump for the band lubrication and cooling and Brush band-cleaning device. – Bimetallic band for profiles and solid pieces. – Instructions manual and spare parts list
