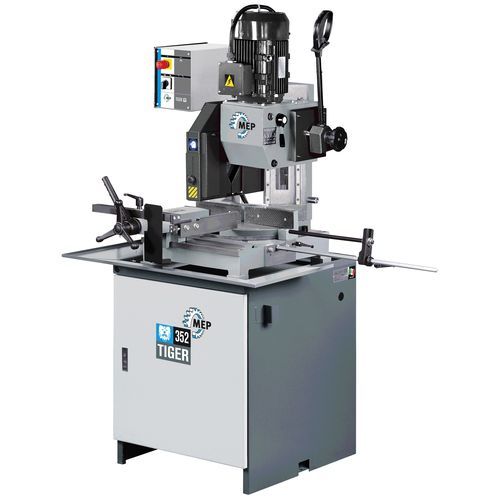

Band saw TIGER 352/MA
for steelvertical

band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
Add to favorites
Compare this product


Characteristics

Technology
band
Treated material
for steel
Other characteristics
vertical
Round piece diameter

Min.: 0 mm (0 in)

Max.: 115 mm (5 in)

Description

TIGER 352, manual vertical sawing machine to cut from +60° to -45°, with HSS blade. A FEW FEATURES: - Sawing head movement on double linear guides with preloaded slides with recirculating ballscrews. - Electrical panel (wiring totally identifiable, main lockable disconnect switch, motor magneto-thermal overload, minimum tension coil, protection against missing phase, low tension safety device 24 V). - Low voltage IP55 control handle. - Rotating table on a center pin with axial bearing which allows higher precision on the cutting angle set. - Double set of gears to obtain a high performance. - Four speeds blade rotation 15/30/45/90 rpm (OPTIONAL 30/60/90/180 rpm). - Vice with anti-burr device with double clamping of the piece. - Wire chip brush for band cleaning. - Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod. - Stock support arm with roller predisposed to mount loading table. - Steel base with chip drawer and removable coolant tray. - Electrical pump for the blade lubrication and cooling. - The machine is supplied without saw blade. - Service keys and instructions manual for maintenance and spare parts list. The vice on the TIGER 352 MA (pneumatic vice) opens and closes by means of a manually operated valve (or by means of a footpedal which is instead optional).

VIDEO
