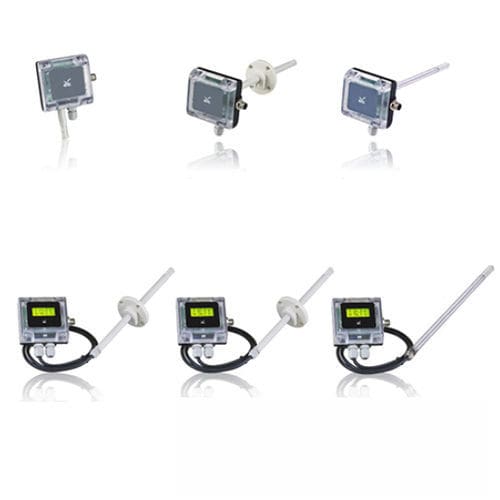

Relative humidity and temperature transmitter TH 80X

wall-mountduct-mount4-20 mA

Product overview
TH 80X humidity and ambient temperature transmitter for wall mounting in industrial environments or outdoor installations, equipped with sensors in a Ø12×250 mm probe. Specifically designed for duct mounting.

Features

• Power supply: 11 – 35 Vdc
• Consumption: 2-wire DC 41 mA; 3-wire DC 56 mA; 3-wire AC 150 mA
• Protection: IP54 (probe sensor IP20)
• Measurement range: Temperature 0–50 ºC; Humidity 0–100 % RH
• Recommended operating range: Temperature 15–35 ºC; Humidity 20–80 % RH
• Output: 4–20 mA (optional 0–10 V)
• Accuracy: Temperature at 25 ºC ±0.3 ºC + 0.002 ºC × operating temperature; Humidity at 25 ºC ±0.3 %

Applications / Mounting
Suitable for wall mounting in industrial or outdoor installations and specifically designed for duct mounting. Sensors supplied as a probe with Ø12×250 mm dimensions.

Technical specifications

• Model: TH 80X
• Probe dimension: Ø12×250 mm
• Power supply: 11 – 35 Vdc
• Consumption: 2-wire DC 41 mA; 3-wire DC 56 mA; 3-wire AC 150 mA
• Protection rating: IP54 (probe sensor IP20)
• Temperature measurement range: 0–50 ºC
• Humidity measurement range: 0–100 % RH
• Recommended operating range: Temperature 15–35 ºC; Humidity 20–80 % RH
• Outputs: 4–20 mA (standard), optional 0–10 V
• Accuracy: Temperature at 25 ºC ±0.3 ºC + 0.002 ºC × operating temperature; Humidity at 25 ºC ±0.3 %
• Designed for wall and duct mounting; suitable for industrial/outdoor environments
