Differential pressure transmitter SD03
piezoresistive4-20 mA2-wire

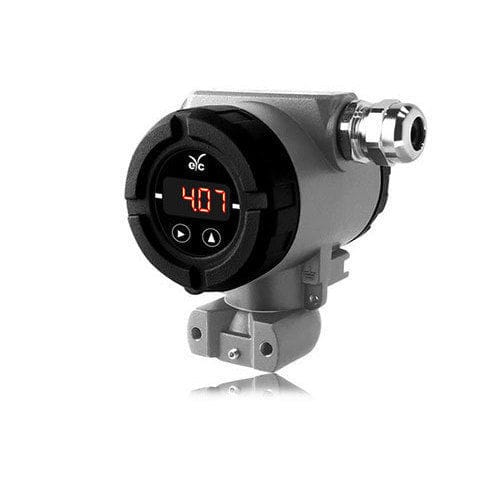

Differential pressure transmitter - SD03 - MESEL S.L - piezoresistive / 4-20 mA / 2-wire
Differential pressure transmitter - SD03 - MESEL S.L - piezoresistive / 4-20 mA / 2-wire
Add to favorites
Compare this product
Go to the MESEL S.L website for more information

Characteristics

Pressure type
differential
Technology
piezoresistive
Output
4-20 mA, 2-wire
Applications
process, for HVAC systems, for hydraulic applications
Other characteristics
two-wire, with display, with digital display
Precision

0.2 %

Description

Title
  • Industrial differential pressure transmitter (Model SD03) with built-in display and 2-wire 4 … 20 mA output.


Overview
  • Designed for industrial environments with a metal enclosure and front-mounted display.
  • 2-wire loop-powered transmitter providing 4 … 20 mA DC output for integration into process control loops.


Functional details
  • Measurement variables: differential pressure, pressure, level, temperature (depending on connected sensor/transducer).
  • Display range: -1999 … +9999 for clear digital readout.
  • Accuracy: 0.2 % F.S.


Technical specifications
  • Model: SD03
  • Enclosure: metal housing suitable for industrial installation
  • Electrical connection: 2-wire loop connection
  • Output: 4 … 20 mA DC
  • Display: integrated digital indication


Applications
  • Process control, hydraulic systems, HVAC, level measurement and general industrial monitoring.


Ordering information
  • Specify model SD03, required measurement range, process connection and calibration options when ordering.
Go to the MESEL S.L website for more information
