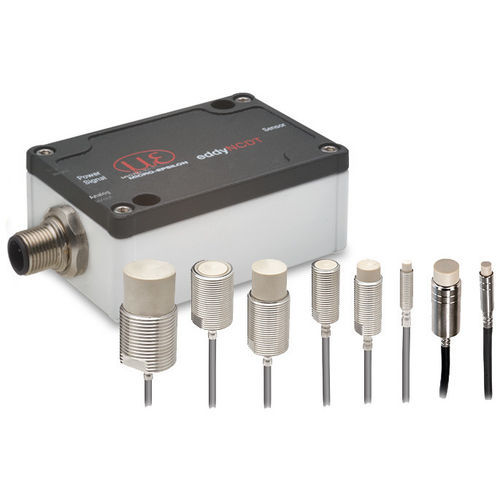

Linear displacement sensor eddyNCDT 3020

non-contactinductiveeddy current

The eddyNCDT 3020 is a compact and powerful inductive measuring system (eddy current) for fast and precise displacement, distance and position measurements in industrial applications. Flexible in terms of connectivity and easy to configure, it can be used for numerous measurement tasks in industry and machine building. The sensor system is designed for series and OEM applications and delivers precise and stable measurement results even under harsh conditions - up to max. 200 °C ambient temperature. The robust controller can be combined with a wide variety of sensors and is factory-adapted to ferromagnetic or non-ferromagnetic materials. Characteristics: - Ideal for use at high temperatures: controller up to 105 °C / sensor up to 200 °C - Precise distance measurements with high resolution up to 40 nm - For fast measurements: Measuring rate 80 kSa/s up to a frequency response of 5 kHz - Robust and compact design with IP67 - RS485 interface, scalable analog output (current) and switching output - Fieldbus connection via interface module - Easy configuration via sensorTOOL software - Compatible with numerous sensors offering measuring ranges from 1 ... 80 mm
