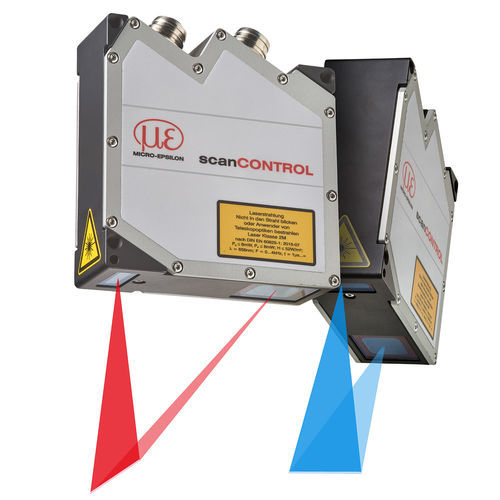

3D scanner scanCONTROL 25x0inspectionprofilefor quality control
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3D
- Applications
- inspection, profile, for quality control, for robots
- Technology
- laser, laser line triangulation
- Application domain
- for production lines, laboratory
- Configuration
- compact, integrated, in-line
- Other characteristics
- high-precision, high-speed, high-rate, high-resolution, Ethernet, with blue laser diode, with integrated electronics, automated, non-contact, robotic
- Length
Min.: 25 mm
(1 in)Max.: 265 mm
(10 in)- Width
Min.: 25 mm
(1 in)Max.: 144 mm
(6 in)- Measuring distance
Min.: 25 mm
(1 in)Max.: 100 mm
(3.9 in)
Description
Product description
scanCONTROL 25x0 laser profile scanners are designed for industrial inline measurement and integration into production lines and machine building. The series offers compact housings, selectable measuring ranges and stable signal performance for high-volume measurement tasks. Models are available with three Z-range variants and with red or blue laser. Optional accessories, cable types and interface modules enable system integration in automation environments.
Key features
Applications
Accessories & integration
Technical specifications
scanCONTROL 25x0 laser profile scanners are designed for industrial inline measurement and integration into production lines and machine building. The series offers compact housings, selectable measuring ranges and stable signal performance for high-volume measurement tasks. Models are available with three Z-range variants and with red or blue laser. Optional accessories, cable types and interface modules enable system integration in automation environments.
Key features
- Z-axis measuring range up to 265 mm
- X-axis measuring range up to 143.5 mm
- Measurement speed: 2000 Hz
- Measuring rate: 1,280,000 points/s
- Line linearity (Z-axis) from 2 μm
- Resolution (X-axis) up to 640 points
- Red or blue laser options
- High signal stability for series measurements
- Compatible with Cognex VisionPro
Applications
- Inline profile and thickness measurement in production
- Machine building and automation requiring high throughput
Accessories & integration
- Protective housings and mounting accessories
- Different cable types and lengths
- Interface modules for fieldbus and vision systems
- Integration support for production line automation
Technical specifications
- Z-axis measuring range: up to 265 mm
- X-axis measuring range: up to 143.5 mm
- Measurement speed: 2000 Hz
- Measuring rate: 1,280,000 points/s
- Line linearity (Z-axis): from 2 µm
- Resolution (X-axis): up to 640 points
- Laser options: red or blue
- Compatibility: Cognex VisionPro
