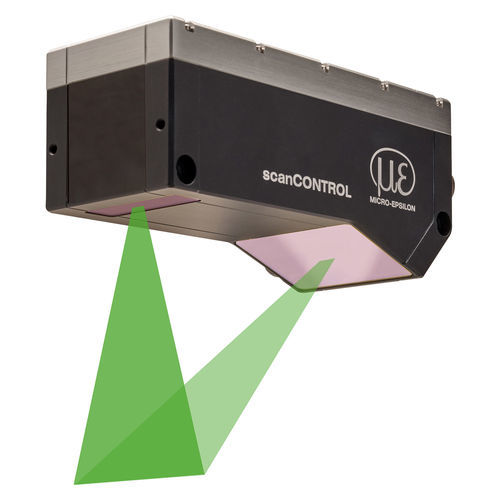

3D scanner scanCONTROL 8x00

measurementinspectionfor welding inspection

Product overview
The scanCONTROL 8x00 family (scanCONTROL 8500 / 8200) are laser profile scanners for precise 2D profile and calibrated 3D measurements. They combine Green Laser illumination, 4K-class profiles and integrated SMART 3D evaluation to deliver high-detail profile capture and native calibrated 3D point cloud output for inline inspection and process monitoring.

Key features

• 4,224 points per profile for detailed feature detection
• Measuring rate up to 25,000,000 points/sec for dynamic processes
• Green Laser technology for improved signal stability and low noise on challenging surfaces
• Integrated SMART 3D evaluation inside the scanner (no external controller required)
• SMART measurement value transmission via PROFINET, EtherCAT, Ethernet/IP and native Ethernet (UDP / Modbus TCP)
• Valid3D: calibrated 3D point clouds output via GigE Vision / GenICam

Ultra-compact scanner with integrated signal processing
The 8x00 series features an ultra-compact hardware design with onboard SMART 3D processing. It is intended for easy integration in static installations and robot-mounted applications, enabling autonomous measurement tasks without additional control hardware.

• Ultra-compact form factor
• Easy system integration (static and robot use)
• Onboard storage of measurement programs for autonomous SMART operation

Green Laser technology
The optimized Green Laser wavelength reduces measurement noise and increases repeatability across a wide range of surface types. Shorter exposure times and improved signal robustness extend applicability to reflective, absorptive or mixed-material surfaces.

Calibrated 3D point clouds (Valid3D)
Devices produce calibrated 3D point clouds (Valid3D) for true 3D evaluation. Valid3D output is available via GigE Vision / GenICam and can be processed by third-party software or custom integration solutions.

Software and SMART operation
The 3DInspect software supports configuration and creation of 2D/3D measurement programs. More than 80 measurement programs are available for common tasks (gap, angle, step height, etc.). Programs can be stored on the scanner for autonomous SMART operation, enabling direct measurement output to PLCs or fieldbus systems.

Industrial readiness & options
The 8x00 series is designed for industrial environments and offers cooling options for elevated ambient temperatures (passive heat sink, active cooling with fan, custom cooling solutions). Multiple industrial interfaces simplify integration into automation systems.

Applications

• Welding automation: gap control and seam inspection
• Battery production: cell alignment and height inspection
• Assembly monitoring: adhesive bead inspection and dimensional checks
• Electronics production: PCB assembly inspection and process monitoring

Technical specifications

• Series / models: scanCONTROL 8x00 (examples: 8500 / 8200)
• Points per profile: 4,224
• Maximum measuring rate: up to 25,000,000 points/sec
• Resolution: 4K-class profiles
• Laser technology: Green Laser (optimized wavelength for low noise)
• Integrated evaluation: SMART 3D inside the scanner (no external controller required)
• Interfaces / protocols: PROFINET, EtherCAT, Ethernet/IP; native Ethernet (UDP / Modbus TCP)
• 3D output: calibrated 3D point clouds (Valid3D) via GigE Vision / GenICam
• Measurement programs: >80 built-in 2D/3D programs; programs can be stored on the scanner
• Options: passive/active/custom cooling for high ambient temperatures
• Typical use: static installation, robot integration, inline process control
