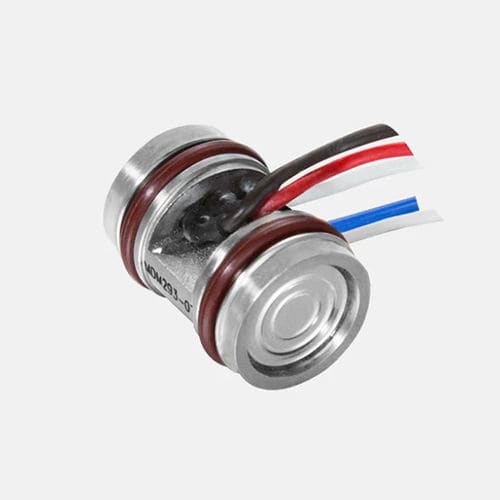

Differential pressure sensor MDM293

siliconvoltage outputO-ring

Gas & Liquid Pressure Measure, Pressure Checking Meter, Pressure Calibrator, Venturi and Vortex Flow Meters MDM293 Differential Pressure Sensor is an OEM sensing element with stainless steel isolated diaphragm. The differential pressure being measured is transferred to the silicon pressure sensor via the isolation diaphragm and the silicone oil filling, ensuring precise measurement of the differential pressure. This model is small in size, strong in hydrostatic pressure resistance, high in precision, stable and reliable. Features • Constant current or constant voltage power supply • Isolated Construction, enable to measure various media • OEM differential pressure sensor • Full stainless steel 316L Electrical Performance • Power Supply: ≤2.0mA DC • Electrical Connection: 100mm silicon rubber flexible wires • Common mode voltage output: 50% of input (typ.) • Input Impedance: 2kΩ~5kΩ • Output Impedance: 3.5kΩ~6kΩ Construction Performance • Diaphragm: Stainless steel 316L • Housing: Stainless steel 316L • Pin: 100mm silicon rubber flexible wires • O-ring: FKM • Net weight: ~20g
