Analog I/O module µCAN.4.ai-BOX
FieldbusCANopenCAN

Analog I/O module - µCAN.4.ai-BOX - MicroControl GmbH & Co. KG - Fieldbus / CANopen / CAN
Analog I/O module - µCAN.4.ai-BOX - MicroControl GmbH & Co. KG - Fieldbus / CANopen / CAN
Analog I/O module - µCAN.4.ai-BOX - MicroControl GmbH & Co. KG - Fieldbus / CANopen / CAN - image - 2
Add to favorites
Compare this product

Characteristics

Signal type
analog
Interface
Fieldbus, CANopen, CAN
Number of inputs/outputs
16-I/O
Applications
voltage, current
Mounting
standard, box
Other characteristics
universal

Description

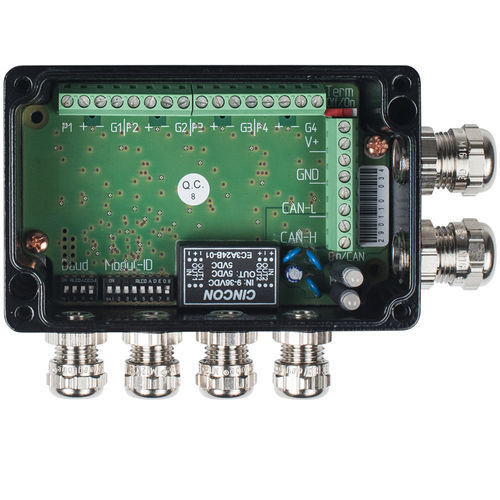

The µCAN.4.ai-BOX is an extended universal measurement module for the acquisition of analogue standard signals. The device is designed for measuring signals of +/- 10 V, 0…20 mA or 4…20 mA. The CAN interface supports the protocol CANopen. Features Voltage +/- 10 V Current 0(4)…20 mA Accuracy 0.01 % (FS) Resolution 16-bit (1 mV / 1 µA) Resolution up to 24-bit (0,01 mV / 0,01 µA) Sampling rate 5ms / 200 Hz Galvanically isolated fieldbus Adjustable scaling Signal type freely configurable Protected against mechanical stress Fieldbus CAN Protocol CANopen / Raw CAN
