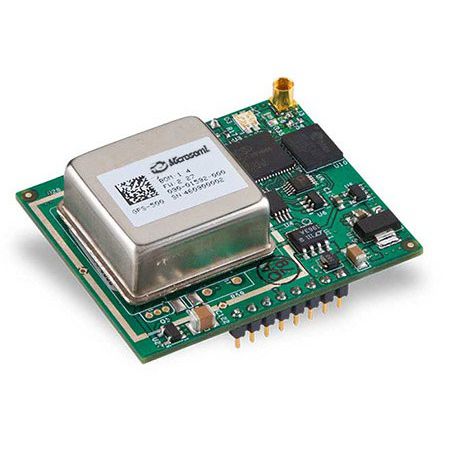

OCXO oscillator GPS-500

electromechanicalsurface-mountlow phase noise

The GPS-500 is a 10 MHz OCXO-based GPSDO with a small footprint, a low profile, and an extended temperature range, all in a design aimed at cost=sensitive LTE applications. The Microsemi ® GPS-500 is 10 MHz OCXO-based GPS Disciplined Oscillator (GPSDO), which features a very small footprint and low profile (1.6" x 1.9" x 0.63") and an extended operating temperature range (-40 °C to +85 °C) in a design aimed at cost-sensitive LTE applications. The GPS-500 has a high-performance GPS receiver that can track up to 50 GPS signals, down to levels as low as -158 dBm. The receiver is compatible with GPS, WAAS, EGNOS, and MSAS signals, and is Galileo-ready. Key Features Specially designed for cost-sensitive LTE applications High-performance GPS Receiver Small footprint and low profile: only 1.6" x 1.9" x 0.63" Extended temperature range of -40 °C to +85 °C Holdover stability of < ±15μs over 24hrs @ +25.0 °C 1 PPS output accuracy of ±35 ns to UTC RMS (1-sigma), GPS-locked
