OCXO oscillator GPS-2650

OCXO oscillator
OCXO oscillator
Add to favorites
Compare this product


Other characteristics
surface-mount, high-stability
Electrical characteristics
low phase noise
for telecom applications

100 MHz

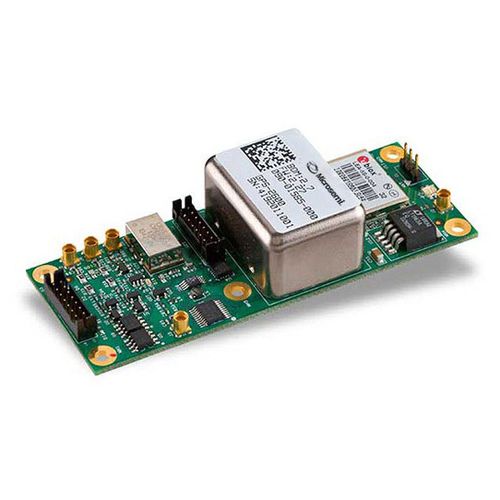

The GPS-2650 is a 100 MHz Double-Oven OCXO-based GPSDO's. The GPS-2650 covers a temperature range of -25 °C to +75 °C, more extense than the GPS-2600. Aimed at radar applications requiring a high-stability, low-phase noise reference, these units have all the firmware capabilities of the GPS-2000. The built-in distribution amplifier provides two 10 MHz outputs, seven 100 MHz outputs, and three 1 PPS outputs, all with high isolation. The double-oven reference oscillator allows for excellent holdover performance. The GPS-2600 features a high-performance GPS receiver that can track up to 50 GPS signals, down to levels as low as -160 dBm. The receiver is compatible with GPS, WAAS, EGNOS, and MSAS signals, and is Galileo-ready. Key Features High-performance GPS Receiver Small footprint and low profile: only 1.5" x 4" x 0.8" Excellent holdover stability Built-in Distribution Amplifier for multiple outputs at both 100 MHz and 10 MHz Low phase noise and very low phase noise floor at 100 MHz 1 PPS output accuracy of ±30 ns to UTC RMS (1-sigma), GPS-locked
