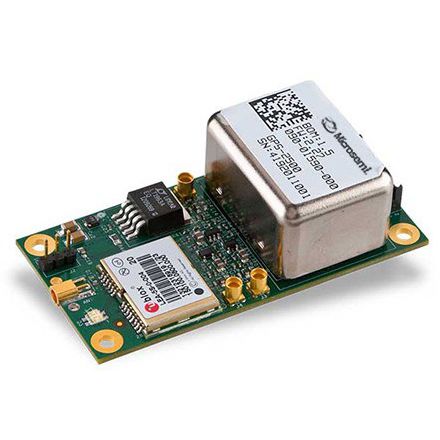

OCXO oscillator GPS-2500

electromechanicalsurface-mountlow phase noise

The GPS-2500 is a 10 MHz Double-Oven OCXO-based GPSDO's. The GPS-2500 covers a temperature range of 0 °C to +75 °C. These units have all the firmware capabilities and high- isolation outputs of the GPS-2000, while offering improved holdover performance, thanks to their double-oven reference oscillator. It features a high-performance GPS receiver that can track up to 50 GPS signals, down to levels as low as -160 dBm. The receiver is compatible with GPS, WAAS, EGNOS, and MSAS signals, and is Galileo-ready. Key Features High-performance GPS Receiver Small footprint and low profile: only 1.5" x 3" x 0.8" Excellent holdover stability Built-in 10 MHz Distribution Amplifier with 3 outputs (>80 dB isolation) Low phase noise 1 PPS output accuracy of ±30 ns to UTC RMS (1-sigma), GPS-locked
