Groove pulley P ,AP ,PL ,PK ,PF ,L ,U ,T
belt

groove pulley
groove pulley
groove pulley
groove pulley
groove pulley
groove pulley
groove pulley
groove pulley
groove pulley
Add to favorites
Compare this product


Characteristics

Type
groove
Applications
belt

Description

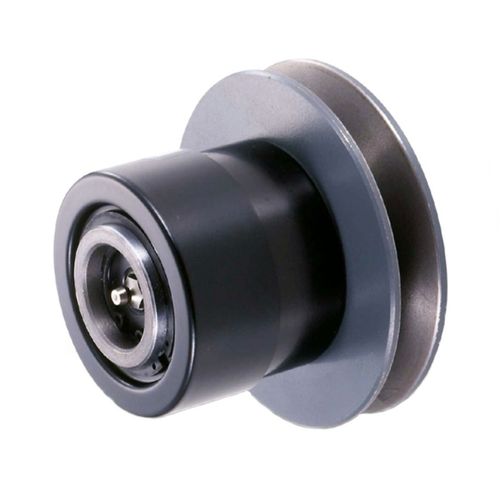

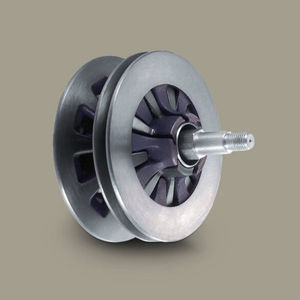

The model P of the Speed Change Pulleys is a stand-alone solution. Standard V-Belts are used for transmitting the torque. The maximum diameter is 218mm for this series. Transmission power 0.2 to 3.7 kW Transmission ratio 1 : 1.4 to 1 : 1.6 Standard V-Belt Pulley diameter from 86 to 218 mm RoHS compliant The Speed ​​Change Pully AP is a further development of Miki Pulley’s first belt transmission. In the latest version, the speed can be adjusted while the shaft distance remains the same. The belts are standard V-Belts. For motors from 0.2 to 0.37 kW Transmission ratio 1 : 1.9 to 1 : 2.4 Standard V-Belt Constant shaft distance RoHS compliant The PL Pulley has especially been developed for high speed applications. Thanks to its mass-reduced design, a high speeds usage is easily achievable. The power transmission takes place via a standard V-Belt. For motors from 0.2 to 1.5 kW Ratio 1 : 2 Standard V-Belt Pullis from 116 to 212 mm RoHS compliant The Speed ​​Change Pully PK impresses with its very high adjustment range. It is operated with a Wide Speed ​​Changer Belt and has an above-average service life of the components. For motors from 0.2 to 18.5 kW Ratio 1 : 3 Wide Speed Changer Belt Pulleys from 150 to 400 mm RoHS compliant The Speed ​​Change Pully PF is operated with Wide Speed ​​Changer Belts. Due to the special design of the shift axes, a very high belt lifetime can be achieved. For motors from 0.4 to 0.37 kW Ratio 1 : 2.4 Wide Speed Changer Belt High lifetime RoHS compliant
