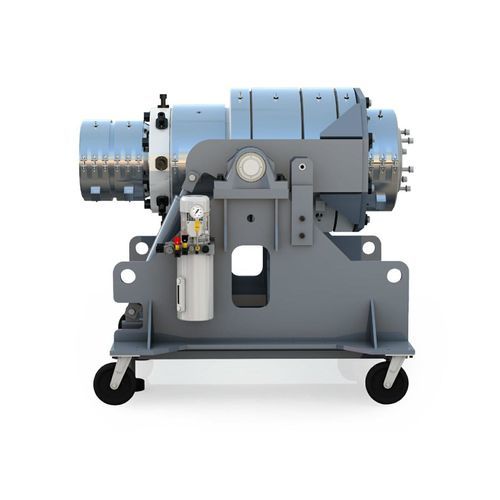

Die head

Overview
Milacron manufactures die heads for new-design projects and OEM replacements. Die heads are engineered to maximize extruder output while maintaining product quality and enabling efficient, timely changeovers. Milacron keeps a wide selection of common styles and sizes in stock and provides engineering support to design dies tailored to specific extrusion processes. A Customer Stocking Program is available to minimize lead times and reduce downtime.

Applications and Product Families
Die heads are optimized for PVC and PO solid-wall pipe production. The Genca brand line serves wire and cable extrusion, supporting single- and multi-conductor products, multi-layer constructions, striping options and special shapes.

Available In

• Asia/Pacific
• North America
• South America

Key Models and Options
Key products include the MPH solid-wall PVC die head, PH solid-wall PO die head, and Genca crossheads and in-line heads for wire and cable. Configurations are offered in fixed-center or adjustable designs and multiple construction materials to suit process requirements.

Features

• Optimized melt-flow paths for consistent, smooth pipe with minimal overweight.
• Quick tip change-over and quick-twist die change systems to reduce downtime.
• Precision-designed melt channels (spiral, multi-channel or tapered) to deliver balanced flow across the operating range.
• Genca crossheads and in-line heads available in stainless steel, high-temperature alloys (e.g., Inconel) and high-strength tool steel; other materials by specification.
• Controlled metallurgy and heat treatment to extend service life.
• Assembly/disassembly tool kits available for crossheads.
• Quality assurance checks and certification provided per the User’s Manual on all Genca products.
• Trade-in and rebuild services available for selected used crossheads; larger crossheads (>7–20 in) available on special order.

More than Machines
Milacron positions die heads within a complete plastic-processing offering including product engineering, aftermarket parts and service support to help customers optimize production efficiency and pursue sustainability goals.

Technical characteristics / Specifications

• Product family: Die Heads (MPH, PH, Genca).
• Applications: PVC solid-wall pipe, PO pipe, wire and cable extrusion (single to multi-conductor, multi-layer).
• Stock: Popular styles and sizes maintained; Customer Stocking Program offered.
• Change-over systems: Quick tip change-over; quick-twist die change.
• Flow design: Spiral, multi-channel or tapered melt-flow channels for balanced flow.
• Construction materials: Stainless steel, high-temperature alloys (e.g., Inconel), high-strength tool steel; other metals by specification.
• Configurations: Fixed-center or adjustable crossheads and in-line heads.
• Quality: Assembled and QA-checked; certification per User’s Manual.
• Aftermarket: Assembly/disassembly tool kits, trade-in options, rebuild services, parts & service support.
• Special orders: Larger crossheads (>7–20 in) manufactured on special order.
