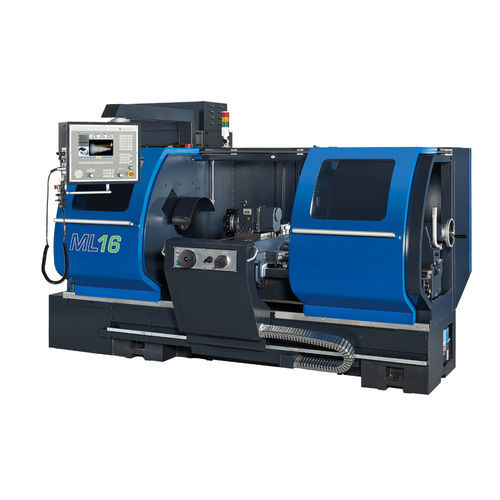

CNC turning machine ML16II/403-axis384 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Number of tool stations
- 384 tools
- Diameter
440 mm
(17.32 in)- Bar capacity
52 mm
(2 in)- Axe X
280 mm
(11 in)- Axe Z
1,130 mm
(44 in)- Rapids on X
12,700 mm/min
(8 in/s)- Rapids on Z
12,700 mm/min
(8 in/s)- Nominal power
11 kW
(15 hp)- Overall lenght
3,137 mm
(124 in)- Overall width
3,607 mm
(142 in)- Overall height
2,337 mm
(92 in)- Weight
2,730 kg
(6,019 lb)
Description
The ML16II/40 tool room lathe has 17″ swing and 40″ length with a 2.04″ spindle bore. With an 18 HP, 4,000 RPM spindle it generates 124 ft-lbs of torque. Standard with an 8 station electro-mechanical turret full enclosure and more.
Standard Features
15-inch LCD color display
Solid model graphic display
120 GB program storage memory
DXF file import
Networking
35 mm linear way technology
Automatic lubrication
Spindle load meter
Flood coolant with enclosure
Thread chasing feature (most models)
500 IPM rapid traverse rate
LCD hour meter
One year warranty
Add-on Options
10 or 14 in bore options for ML35 and ML40
Live tooling option for ML22 and larger lathes
Lift-up chip conveyor
Additional tool holders
Hydraulic quill for tailstock (most models)
Bi-directional turning cycle
Pneumatic 5C collet closer (ML16)
Additional spare “M” functions
Automatic tool turrets
Tool posts
Steady rest
Follow rest
Digital Setup Assistant
Milltronics Shop View
