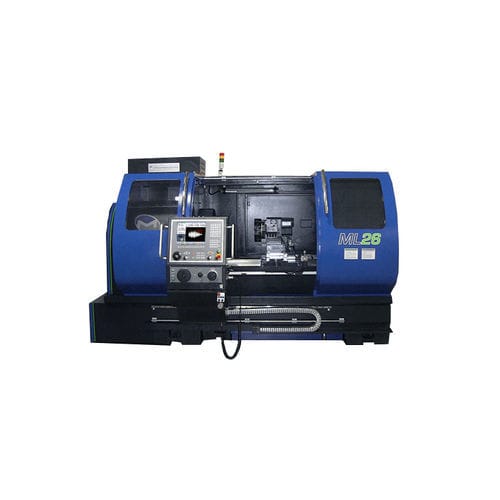

CNC turning machine ML26/402-axisfor aluminumfor automotive applications
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Applications
- for aluminum, for automotive applications
- Diameter
27 in
- Spindle speed
Max.: 2,000 rpm
(12,566.371 rad.min-1)Min.: 40 rpm
(251.327 rad.min-1)- Bar capacity
3 in
- Axe X
13 in
- Axe Z
42 in
- Nominal power
15 ch, 24 ch
(15 hp, 24 hp)- Overall lenght
101 in
- Overall width
130 in
- Overall height
83 in
Description
A popular toolroom lathe size for job shops and customers who re-cut aluminum wheels for automobiles, the ML26/40 has a 27” swing, 40” length and 3.22” spindle bore. Featuring a 24 HP, 2,600 RPM spindle it produces 620 ft-lbs. of torque. Standard with an 8 station electro-mechanical turret. Options include chucks and chip conveyor.
Standard Features
15-inch LCD color display
Solid model graphic display
120 GB program storage memory
DXF file import
Networking
35 mm linear way technology
Automatic lubrication
Spindle load meter
Flood coolant with enclosure
Thread chasing feature (most models)
500 IPM rapid traverse rate
LCD hour meter
One year warranty
Add-on Options
10 or 14 in bore options for ML35 and ML40
Live tooling option for ML22 and larger lathes
Lift-up chip conveyor
Additional tool holders
Hydraulic quill for tailstock (most models)
Bi-directional turning cycle
Pneumatic 5C collet closer (ML16)
Additional spare “M” functions
Automatic tool turrets
Tool posts
Steady rest
Follow rest
Digital Setup Assistant
Milltronics Shop View
