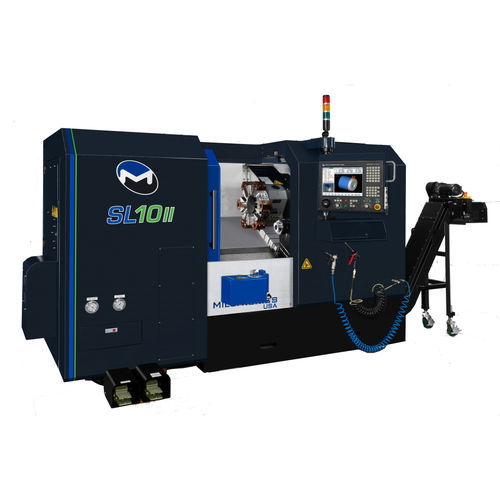

CNC turning center SL10-II2-axisA2-812 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-8
- Number of tool stations
- 12 tools
- Diameter
582 mm
(22.91 in)- Spindle speed
Max.: 3,000 rpm
(18,849.556 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Maximum cutting diameter
450 mm
(18 in)- Maximum cutting length
760 mm
(30 in)- Bar capacity
95 mm
(4 in)- Axe X
250 mm
(10 in)- Axe Z
790 mm
(31 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
15 kW, 22 kW
(20.4 hp, 29.9 hp)- Overall lenght
2,804 mm
(110 in)- Overall width
4,860 mm
(191 in)- Overall height
2,248 mm
(89 in)- Weight
4,840 kg
(10,670 lb)
Description
Step up to the SL10-II, featuring a 10″ 3-jaw chuck, 3.74″ spindle bore and maximum turning length of 29.9″. This model has a 30 HP spindle motor and 12 tools in the turret. Options include: chip conveyor, tailstock, parts catcher, and tool presetter.
Standard Features
3-jaw hydraulic chuck with foot switch
12 position auto turret with 1″ slots
True slant bed with one-piece base casting
Linear motion guideways with roller type bearings
Full enclosure with sliding door
Flood coolant
Auto lubrication
Part, wire frame & solid model graphics
Constant Surface Speed (CSS)
120 GB solid-state hard drive
15″ LCD color touch screen display
Spindle load meter
LCD hour meter
One-year warranty
Add-on Options
Parts catcher
Mist collector
Bar feed interface
Bi-directional turning cycle
Automatic tool setter
Hydraulic tailstock
Additional spare “M” functions
Chip conveyor
Oil skimmer
Collet chucks
Digital Setup Assistant
Milltronics Shop View
Catalogs
No catalogs are available for this product.
See all of Milltronics Manufacturing‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
