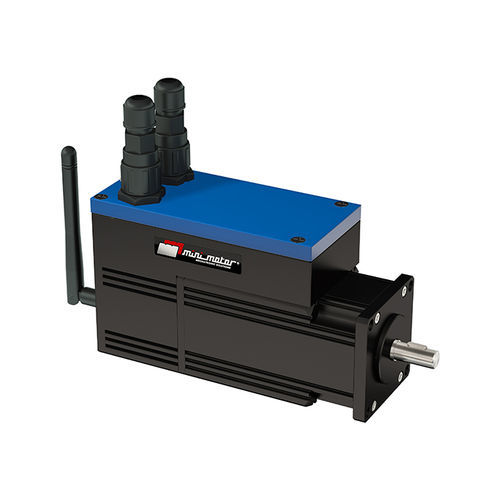

Brushless servomotor WDBSDCintegrated-drivewith wireless communication module
Add to favorites
Compare this product
Characteristics
- Type
- DC, brushless
- Other characteristics
- integrated-drive, with wireless fieldbus, with wireless communication module
- Power
Max.: 630 W
(0.86 hp)Min.: 125 W
(0.17 hp)- Torque
Max.: 3 Nm
(2.212686 ft.lb)Min.: 0.4 Nm
(0.295025 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
BRUSHLESS SERVOMOTOR WITH INTEGRATED DRIVE AND WIRELESS FIELDBUS
– 4-pole sinusoidal brushless Servomotor
– Rotor with NdFeB magnets and reduced clearance bearings
– 24/48 Vdc supply voltage
– Thermal safety cutout
– Class F winding
– IP65 protection (CEI EN 60529)
– Feedback with multi-turn absolute encoder
