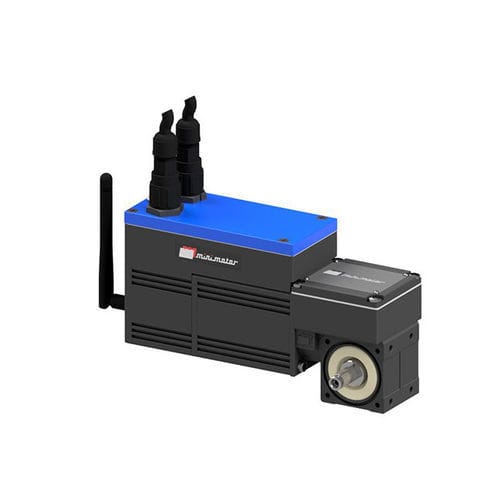

Brushless servo-gearmotor BCWDBS-S3servomotorwormright angle
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless, servomotor
- Type
- worm
- Shaft orientation
- right angle
- Other characteristics
- IP65, with integrated electronics, 4-pole, with wireless fieldbus, with encoder
Description
Brushless worm servogearmotor with integrated drive and wireless fieldbus.
- 4-pole sinusoidal brushless servomotor
- Rotor with NdFeB magnets and reduced clearance bearings
- 24/48 Vdc supply voltage
- Thermal safety cutout, class F winding
- IP65 protection (CEI EN 60529)
- Feedback with multi-turn absolute encoder
- Gearbox case in die-cast aluminium
- CARO bronze ring (120÷160 HB), hardened steel screw with ground thread
- Lubrication with long-life oil, sealing rings for high temperatures
- Wheelbase 20 mm
