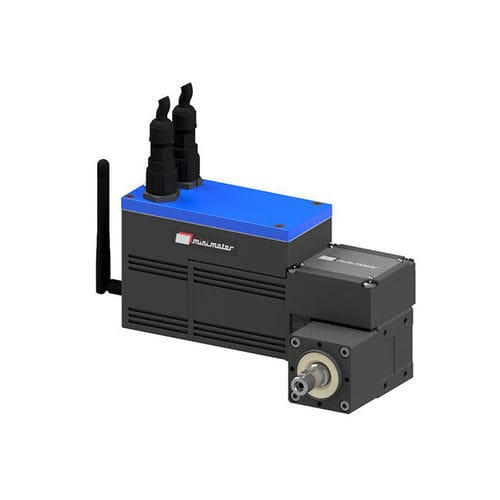

Brushless servo-gearmotor BCEWDBSservomotorplanetaryworm
Add to favorites
Compare this product
Characteristics
- Motor type
- servomotor, brushless
- Type
- planetary, worm
- Shaft orientation
- right angle
- Other characteristics
- IP65, with encoder, with wireless communication module, CANopen
- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Rotational speed
25 rpm
(157.0796 rad.min-1)
Description
Brushless worm servogearmotor with integrated drive, planetary reduction stage, and wireless fieldbus.
- 4-pole sinusoidal brushless servomotor
- Rotor with NdFeB magnets and reduced clearance bearings
- 24/48 Vdc supply voltage
- Thermal safety cutout, class F winding
- IP65 protection (CEI EN 60529)
- Feedback with multi-turn absolute encoder
- Gearbox first stage case in die-cast aluminium, second stage in steel
- CARO bronze ring (120÷160HB), hardened steel screw with ground thread
- Lubrication with long-life oil, sealing rings for high temperatures
- Wheelbase 20mm
