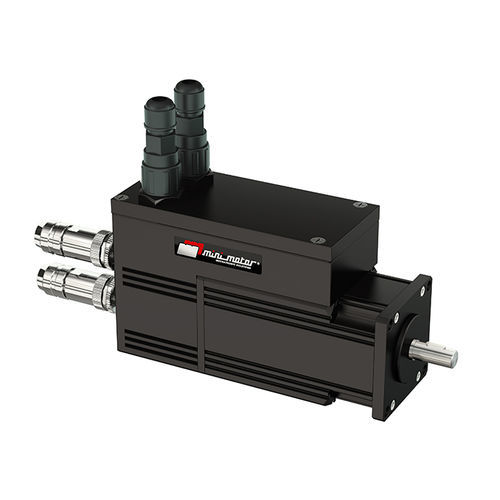

Brushless servomotor DBS-S3DC24 V48 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V, 48 V
- Configuration
- with built-in electromagnetic brake
- Protection class
- IP65
- Other characteristics
- integrated-drive
- Power
125 W, 235 W, 345 W, 630 W
(0.17 hp, 0.32 hp, 0.47 hp, 0.86 hp)- Intensity
4 A, 6.3 A, 8 A, 9.9 A, 15.75 A
- Torque
0.4 Nm, 0.75 Nm, 1.1 Nm, 2 Nm
(0.295025 ft.lb, 0.553172 ft.lb, 0.811318 ft.lb, 1.475124 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Operating temperature
Min.: -10 °C
(14 °F)Max.: 40 °C
(104 °F)
Description
BRUSHLESS SERVOMOTOR WITH INTEGRATED DRIVE
– 4-pole sinusoidal brushless Servomotor
– Rotor with NdFeB magnets and reduced clearance bearings
– 24/48 Vdc supply voltage
– Thermal safety cutout
– Class F winding
– IP65 protection (CEI EN 60529)
– Feedback with multi-turn absolute encoder
