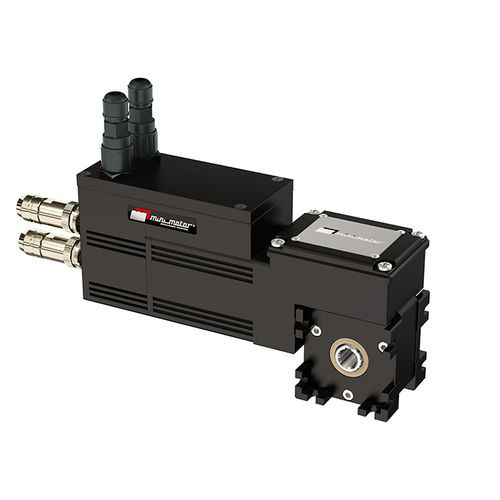

Brushless servo-gearmotor MCDBS-S3 seriesservomotorwormright angle
Add to favorites
Compare this product
Characteristics
- Motor type
- servomotor, brushless
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Power
- 100 W...500 W
- Voltage
- 48 V, 24 V
- Torque
- 5 - 10 Nm, 1 - 5 Nm
- Other characteristics
- IP65, with brake, with integrated controller
- Gear ratio
Min.: 5 unit
Max.: 80 unit
- Operating temperature
Min.: -10 °C
(14 °F)Max.: 40 °C
(104 °F)- Rotational speed
600 rpm
(3,769.9112 rad.min-1)Min.: 37.5 rpm
(235.6194 rad.min-1)Max.: 600 rpm
(3,769.9112 rad.min-1)
Description
BRUSHLESS WORM SERVOGEARMOTOR WITH INTEGRATED DRIVE
– 4-pole sinusoidal brushless servomotor
– Rotor with NdFeB magnets and reduced clearance bearings
– 24/48 Vdc supply voltage
– Thermal safety cutout, class F winding
– IP65 protection (CEI EN 60529)
– Feedback with multi-turn absolute encoder
– Gearbox case in die-cast aluminium
– CARO bronze ring (120÷160 HB), hardened steel screw with ground thread
– Lubrication with long-life oil, sealing rings for high temperatures
– Wheelbase 26 mm
