Brushless DC servo-gearmotor PCEDBS-S3
planetarywormright angle

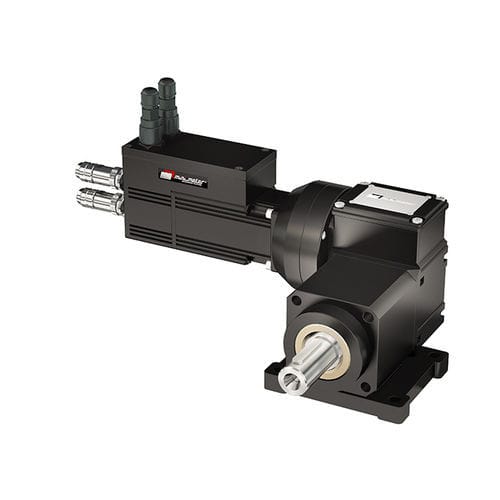

Brushless DC servo-gearmotor - PCEDBS-S3 - Mini Motor SPA - planetary / worm / right angle
Brushless DC servo-gearmotor - PCEDBS-S3 - Mini Motor SPA - planetary / worm / right angle
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Motor type
brushless DC
Type
planetary, worm
Shaft orientation
right angle
Shaft configuration
solid-shaft
Power
100 W...500 W, 500 W...1000 W
Voltage
48 V, 24 V
Torque
20 - 50 Nm, 10 - 20 Nm
Other characteristics
IP65, with brake, with integrated controller
Gear ratio

Min.: 33.25 unit

Max.: 475 unit

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 40 °C
(104 °F)

Rotational speed

90.1 rpm
(566.115 rad.min-1)

Description

BRUSHLESS WORM SERVOGEARMOTOR WITH INTEGRATED DRIVE AND PLANETARY REDUCTION STAGE – 4-pole sinusoidal brushless servomotor – Rotor with NdFeB magnets and reduced clearance bearings – 24/48 Vdc supply voltage – Thermal safety cutout, class F winding – IP65 protection (CEI EN 60529) – Feedback with multi-turn absolute encoder – Gearbox first stage case in die-cast aluminium, second stage in steel – CARO bronze ring (120÷160 HB), hardened steel screw with ground thread – Lubrication with long-life oil, sealing rings for high temperatures – Wheelbase 32 mm
