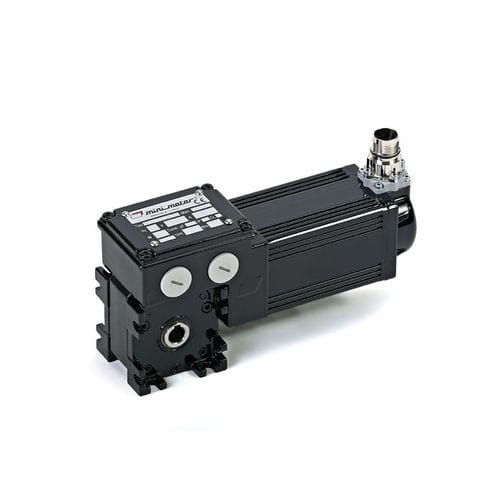

Brushless gearmotor MCBS serieswormright anglehollow-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Power
- 100 W...500 W
- Voltage
- 380 V
- Torque
- 5 - 10 Nm
- Product applications
- for conveyor systems
- Other characteristics
- aluminum frame, IP65, 4-pole
- Gear ratio
Min.: 5 unit
Max.: 80 unit
- Rotational speed
Min.: 75 rpm
(471.2389 rad.min-1)Max.: 600 rpm
(3,769.9112 rad.min-1)
Description
BRUSHLESS WORM SERVOGEARMOTOR
– 4-pole sinusoidal brushless servomotor
– Rotor with NdFeB magnets and reduced clearance bearings
– 230 Vac supply voltage
– Thermal safety cutout, class F winding
– IP65 protection (CEI EN 60529)
– Feedback with 2 poles resolver
– Gearbox case in die-cast aluminium
– CARO bronze ring (120÷160 HB), hardened steel screw with ground thread
– Lubrication with long-life oil, sealing rings for high temperatures
– Wheelbase 26 mm
