Brushless servomotor BS220 VIP654-pole
Add to favorites
Compare this product
Characteristics
- Type
- brushless
- Voltage
- 220 V
- Protection class
- IP65
- Number of poles
- 4-pole
- Power
Max.: 0 kW
(0 hp)Min.: 0 kW
(0 hp)- Torque
Max.: 0.9 Nm
(0.663806 ft.lb)Min.: 0.5 Nm
(0.368781 ft.lb)- Diameter
55 mm
(2.17 in)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description

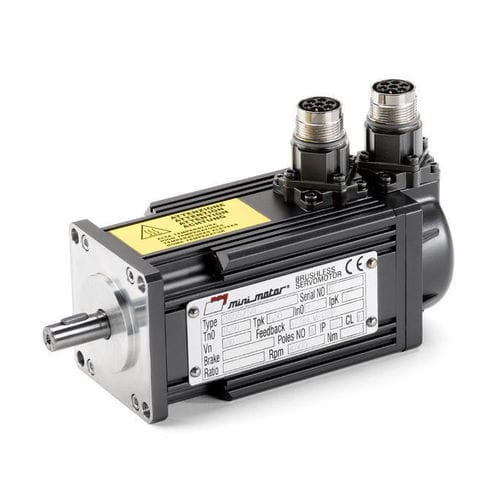

BRUSHLESS SERVOMOTOR
- 4-pole sinusoidal brushless servomotor
- Rotor with NdFeB magnets and reduced clearance bearings
- 230Vac supply voltage
- Thermal safety cutout
- Class F winding
- IP65 protection (CEI EN 60529)
- Feedback with 2 poles resolver
Product line: BS Line
Product type: Brushless servomotor
Protection class: IP65 (CEI EN 60529)
Winding class: F
Feedback: 2 poles resolver
Rotor: NdFeB magnets, reduced clearance bearings
Supply voltage: 230Vac
Thermal safety cutout: Yes
Technical Specifications / Features
- 4-pole sinusoidal brushless motor
- Power range: 188 to 293 W
- Rated torque: 0.500 to 0.900 Nm
- Diameter: Ø 55 mm
