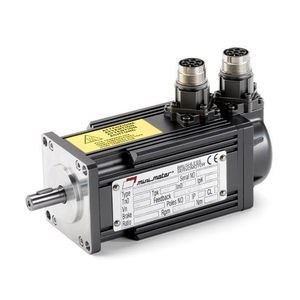

Brushless servo-gearmotor BSE seriesthree-phaseplanetarycoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase, brushless
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W, 500 W...1000 W
- Torque
- 5 - 10 Nm, 1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
- Performance
- low-backlash
- Other characteristics
- IP65, 4-pole, precision, with integrated inverter
- Gear ratio
5 unit, 7 unit, 25 unit, 49 unit
Description
BRUSHLESS PLANETARY SERVOGEARMOTOR
– 4-pole sinusoidal brushless servomotor
– Rotor with NdFeB magnets and reduced clearance bearings
– 230 Vac supply voltage
– Thermal safety cutout, class F winding
– IP65 protection (CEI EN 60529)
– Feedback with 2 poles resolver
– Gearbox case in hardened and tempered steel UNI7874, precision teeth class 7
– Nitrided and hardened steel gears
– Lubrication with long-life oil, sealing rings for high temperatures
