Brushless gear-motor WDBSE-S3
servomotorplanetarycoaxial

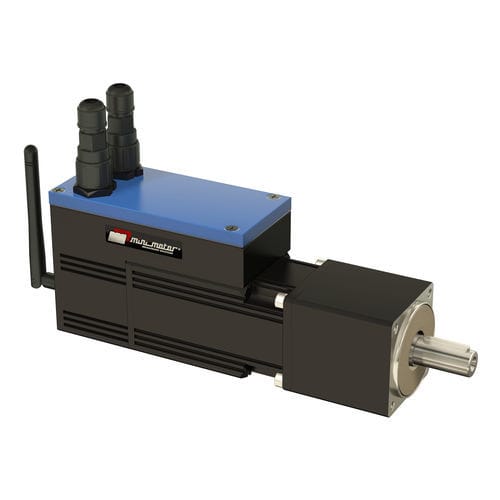

Brushless gear-motor - WDBSE-S3 - Mini Motor SPA - servomotor / planetary / coaxial
Brushless gear-motor - WDBSE-S3 - Mini Motor SPA - servomotor / planetary / coaxial
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Motor type
brushless, servomotor
Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power
100 W...500 W, 500 W...1000 W
Voltage
24 V, 48 V
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm
Certifications
CE
Other characteristics
IP65, with integrated controller, with wireless fieldbus
Gear ratio

5 unit, 7 unit, 25 unit, 49 unit

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Rotational speed

600 rpm
(3,769.9112 rad.min-1)

Description

BRUSHLESS PLANETARY SERVOGEARMOTOR WITH INTEGRATED DRIVE AND WIRELESS FIELDBUS – 4-pole sinusoidal brushless servomotor – Rotor with NdFeB magnets and reduced clearance bearings – 24/48 Vdc supply voltage – Thermal safety cutout, class F winding – IP65 protection (CEI EN 60529) – Feedback with multi-turn absolute encoder – Gearbox case in hardened and tempered steel UNI7874, precision teeth class 7 – Nitrided and hardened steel gears – Lubrication with long-life oil, sealing rings for high temperatures
