Brushless gear-motor MCEWDBS-S3
servomotorplanetaryworm

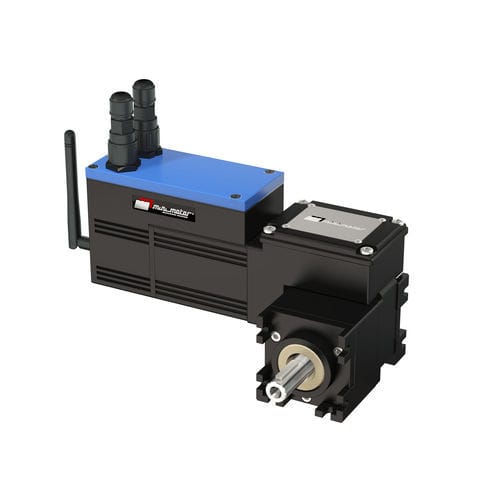

Brushless gear-motor - MCEWDBS-S3 - Mini Motor SPA - servomotor / planetary / worm
Brushless gear-motor - MCEWDBS-S3 - Mini Motor SPA - servomotor / planetary / worm
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Motor type
brushless, servomotor
Type
planetary, worm
Shaft orientation
right angle
Shaft configuration
solid-shaft
Power
100 W...500 W
Voltage
24 V, 48 V
Torque
20 - 50 Nm
Certifications
CE
Other characteristics
IP65, with wireless fieldbus
Gear ratio

Min.: 37.5 unit

Max.: 400 unit

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Rotational speed

80 rpm
(502.6548 rad.min-1)

Description

BRUSHLESSWORMSERVOGEARMOTORWITHINTEGRATEDDRIVE, PLANETARY REDUCTION STAGE AND WIRELESS FIELDBUS – 4-pole sinusoidal brushless servomotor – Rotor with NdFeB magnets and reduced clearance bearings – 24/48 Vdc supply voltage – Thermal safety cutout, class F winding – IP65 protection (CEI EN 60529) – Feedback with multi-turn absolute encoder – Gearbox first stage case in die-cast aluminium, second stage in steel – CARO bronze ring (120÷160 HB), hardened steel screw with ground thread – Lubrication with long-life oil, sealing rings for high temperatures – Wheelbase 26 mm
